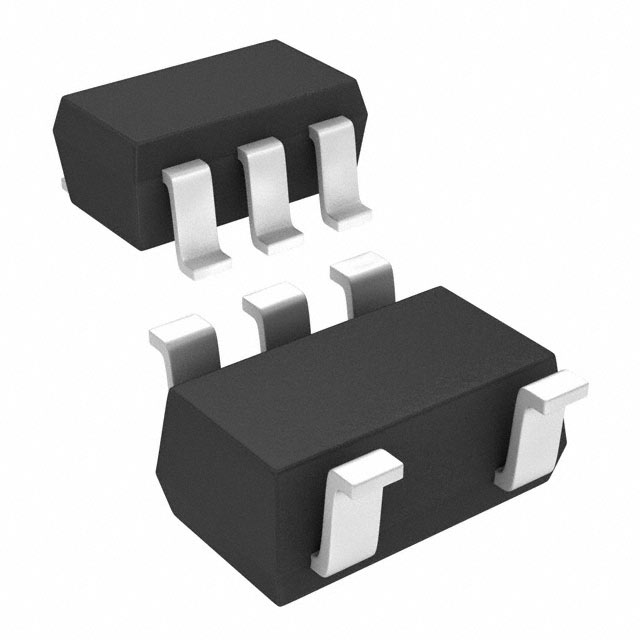

TSV6191AILT

TSV6191系列 轨对轨输入/输出 10 mA 450 kHz CMOS 可调 运算放大器

The TSV619x family of single and dual operational amplifiers offers low voltage, low power operation, and rail-to-rail input and output.

The devices also feature an ultra-low input bias current as well as a low input offset voltage.

The TSV619x have a gain bandwidth product of 450 kHz while consuming only 10 μA at 5 V. They must be used in a gain configuration equal or above 4 or -3.

These features make the TSV619x family ideal for sensor interfaces, battery supplied and portable applications, as well as active filtering.

**Key Features**

.

Rail-to-rail input and output

.

Low power consumption: 10 μA typ at 5 V

.

Low supply voltage: 1.5 to 5.5 V

.

Gain bandwidth product: 450 kHz typ

.

Stable when used in gain configuration

.

Low input offset voltage: 800 μV max A version

.

Low input bias current: 1 pA typ

.

Temperature range: -40 to 85 °C
