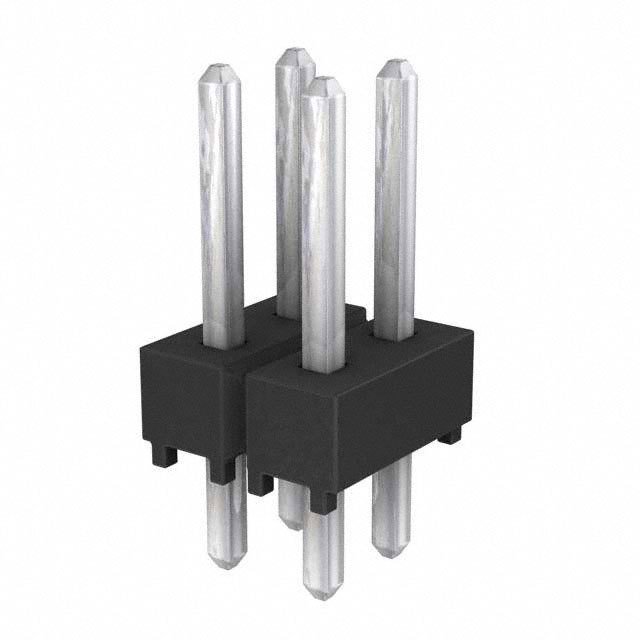

TSW-102-23-T-D

2.54mm 方针

针座 通孔 4 位置 0.100"（2.54mm）

欧时:
HEADER TH 4POS 2ROW

立创商城:
2.54mm 方针

得捷:
CONN HEADER VERT 4POS 2.54MM

艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded TSW-102-23-T-D header connector from Samtec. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 550 VAC. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 105 °C. This product is 5.08 mm long, 8.38 mm tall and 5.08 mm deep. TSW-102-23-T-D is housed in black polyester. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-102-23-T-D  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, TSW Series, Through Hole, 2 Rows
