TM4C123FH6PMI7

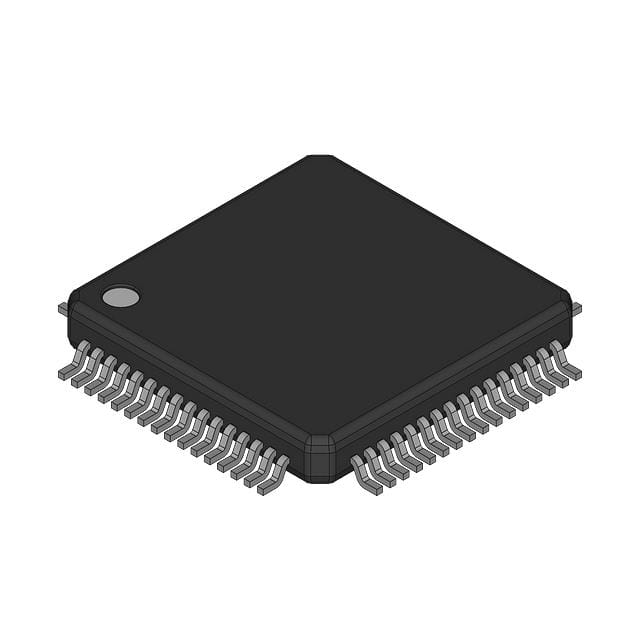

TM4C123FH6PMI7图片1
TM4C123FH6PMI7图片2
TM4C123FH6PMI7图片3
TM4C123FH6PMI7图片4
TM4C123FH6PMI7图片5
TM4C123FH6PMI7图片6
TM4C123FH6PMI7概述

ARM微控制器 - MCU Tiva C Series Microcontroller

The TM4C123FH6PM microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, transportation, and fire and security.


得捷:
IC MCU 32BIT 256KB FLASH 64LQFP


立创商城:
ARM Cortex-M4 80MHz 闪存:256K@x8bit


德州仪器TI:
32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, USB, 64-pin LQFP


贸泽:
ARM微控制器 - MCU Tiva C Series Microcontroller


艾睿:
MCU 32-bit Tiva C ARM Cortex M4F RISC 256KB Flash 1.2V/3.3V 64-Pin LQFP


Verical:
MCU 32-bit ARM Cortex M4F RISC 256KB Flash 1.2V/3.3V 64-Pin LQFP Tray


TM4C123FH6PMI7中文资料参数规格
技术参数

频率 80 MHz

时钟频率 80.0 MHz, 80.0 MHz max

RAM大小 32 KB

位数 12

FLASH内存容量 262144 B

UART数量 8

模数转换数ADC 2

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 64

封装 LQFP-64

外形尺寸

长度 10 mm

宽度 10 mm

高度 1.45 mm

封装 LQFP-64

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TM4C123FH6PMI7引脚图与封装图
TM4C123FH6PMI7引脚图
在线购买TM4C123FH6PMI7
型号: TM4C123FH6PMI7
制造商: TI 德州仪器
描述:ARM微控制器 - MCU Tiva C Series Microcontroller
替代型号TM4C123FH6PMI7
型号/品牌 代替类型 替代型号对比

TM4C123FH6PMI7

TI 德州仪器

当前型号

当前型号

TM4C123FH6PMI

德州仪器

类似代替

TM4C123FH6PMI7和TM4C123FH6PMI的区别
