TMM6263FILM

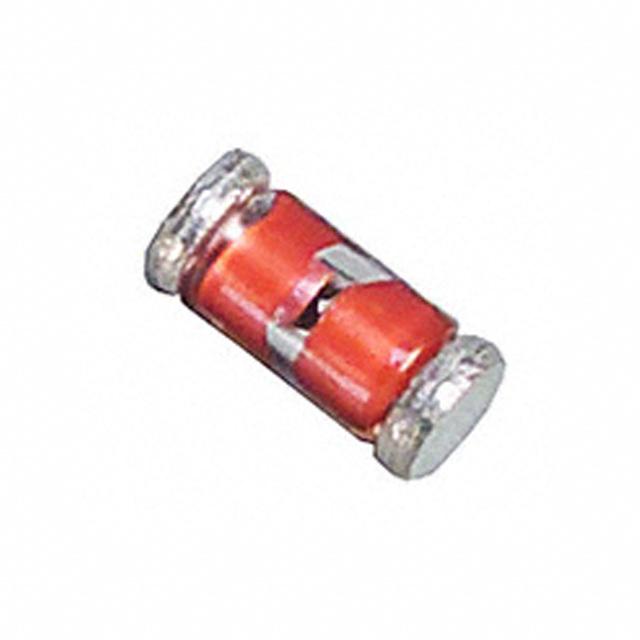

TMM6263FILM图片1

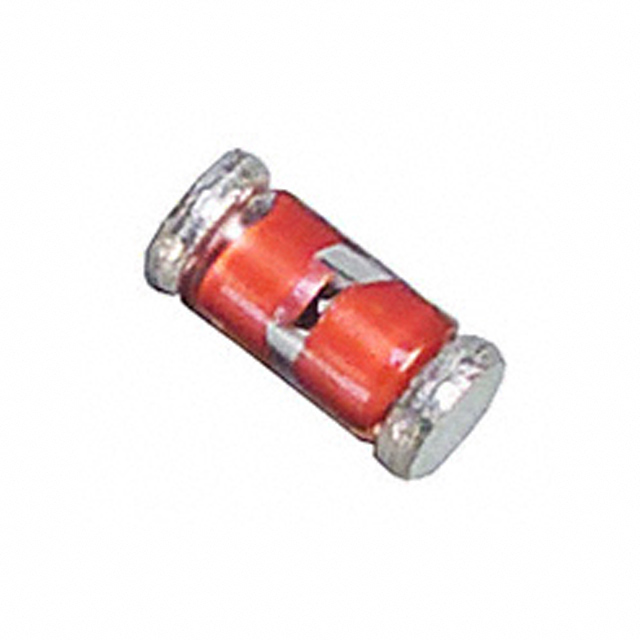

TMM6263FILM图片2
TMM6263FILM图片3
TMM6263FILM图片4
TMM6263FILM图片5
TMM6263FILM图片6
TMM6263FILM概述

TMM 6263 系列 60 V 15 mA 表面贴装 小信号 肖特基二极管 - MINIMELF

Diode Schottky 60V 15mA DC Surface Mount Mini MELF


得捷:
DIODE SCHOTT 60V 15MA MINI MELF


艾睿:
Converting from AC to DC is simple when using a small signal Schottky diode TMM6263FILM rectifier from STMicroelectronics. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This rectifier has an operating temperature range of -65 °C to 200 °C. It is made in a single configuration. Its peak non-repetitive surge current is 0.05 A, while its maximum continuous forward current is 0.015 A.


安富利:
Diode Small Signal Schottky 60V 0.015A 2-Pin Mini-MELF T/R


富昌:
TMM 6263 Series 60 V 15 mA Surface Mount Small Signal Schottky Diode - MINIMELF


Chip1Stop:
Diode Small Signal Schottky 60V 0.015A 2-Pin Mini-MELF T/R


Verical:
Diode Small Signal Schottky 60V 0.015A 2-Pin Mini-MELF T/R


Win Source:
DIODE SCHOTTKY 60V 15MA MINIMELF


TMM6263FILM中文资料参数规格
技术参数

额定电压DC 60.0 V

额定电流 150 mA

电容 2.20 pF

输出电流 ≤15.0 mA

正向电压 1V @15mA

极性 Standard

热阻 400℃/W RθJL

正向电流 15 mA

最大正向浪涌电流(Ifsm) 0.05 A

正向电压Max 1V @15mA

工作温度Max 200 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-213AA

外形尺寸

宽度 1.62 mm

封装 DO-213AA

物理参数

工作温度 -65℃ ~ 200℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买TMM6263FILM
型号: TMM6263FILM
描述:TMM 6263 系列 60 V 15 mA 表面贴装 小信号 肖特基二极管 - MINIMELF
替代型号TMM6263FILM
型号/品牌 代替类型 替代型号对比

TMM6263FILM

ST Microelectronics 意法半导体

当前型号

当前型号

LLSD101A-13

威世

功能相似

TMM6263FILM和LLSD101A-13的区别
