TMS320C28345ZFET

德尔菲诺微控制器 Delfino Microcontrollers

TMS320C2834x Delfino™ MCUs

Overview

The TMS320C2834x C2834x Delfino™ microcontroller MCU devices build on "s existing F2833x high-performance floating-point microcontrollers. The C2834x delivers up to 300 MHz of floating-point

performance, and has up to 516KB of on-chip RAM. Designed for real-time control applications, the

C2834x is based on the C28x™ core, making it code-compatible with all C28x microcontrollers. The on-chip peripherals and low-latency core make the C2834x an excellent solution for performance-hungry real-time control applications.

Features

• High-Performance Static CMOS Technology

– Up to 300 MHz 3.33-ns Cycle Time

– 1.1-V/1.2-V Core, 3.3-V I/O , 1.8-V PLL/Oscillator Design

• High-Performance 32-Bit CPU TMS320C28x

– IEEE-754 Single-Precision Floating-Point Unit FPU

– 16 x 16 and 32 x 32 MAC Operations

– 16 x 16 Dual MAC

– Harvard Bus Architecture

– Fast Interrupt Response and Processing

– Code-Efficient in C/C++ and Assembly

• Six-Channel DMA Controller for McBSP, XINTF, and SARAM

• 16-Bit or 32-Bit External Interface XINTF

– Over 2M x 16 Address Reach

• On-Chip Memory

– Up to 258K x 16 SARAM

– 8K x 16 Boot ROM

• Clock and System Control

– Dynamic PLL Ratio Changes Supported

– On-Chip Oscillator

– Watchdog Timer Module

• Peripheral Interrupt Expansion PIE Block That Supports All 64 Peripheral Interrupts

• Enhanced Control Peripherals

– Eighteen Enhanced Pulse Width Modulator ePWM Outputs

• Dedicated 16-Bit Time-Based Counter With Period and Frequency Control

• Single-Edge, Dual-Edge Symmetric, or Dual-Edge Asymmetric Outputs

• Dead-Band Generation

• PWM Chopping by High-Frequency Carrier

• Trip Zone Input

• Up to 9 HRPWM Outputs With 55-ps MEP Resolution at VDD= 1.1 V 65 ps at 1.2 V

– Six 32-Bit Enhanced Capture eCAP Modules

• Configurable as 3 Capture Inputs or 3 Auxiliary Pulse Width Modulator Outputs

• Single-Shot Capture of up to Four Event Time-Stamps

– Three 32-Bit Quadrature Encoder Pulse QEP Modules

– Six 32-Bit Timers/Nine 16-Bit Timers

• Three 32-Bit CPU Timers

• Serial Port Peripherals

– Up to 2 CAN Modules

– Up to 3 SCI UART Modules

– Up to 2 McBSP Modules Configurable as SPI

– Up to 2 SPI Module s

– One Inter-Integrated-Circuit I2C Bus

• External ADC Interface

• Up to 88 Individually Programmable,

Multiplexed GPIO Pins With Input Filtering

• Advanced Emulation Features

– Analysis and Breakpoint Functions

– Real-Time Debug via Hardware

• 2834x Package Options:

– MicroStar BGA™ ZHH

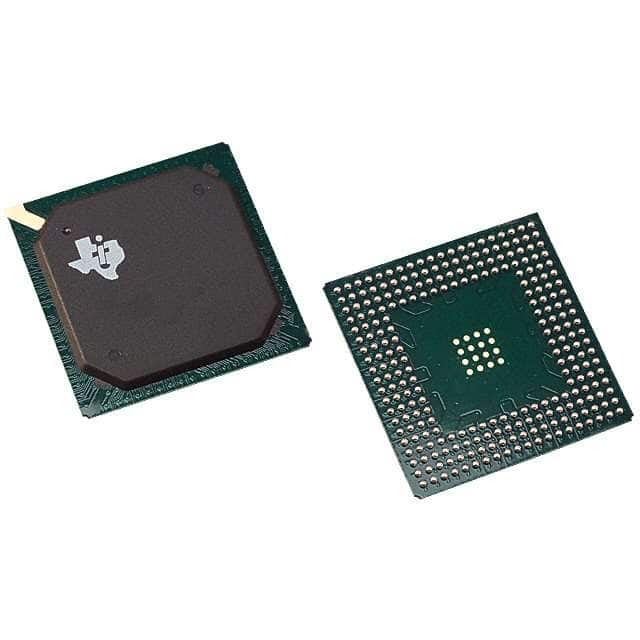

– Plastic BGA ZFE
