TLC072CP

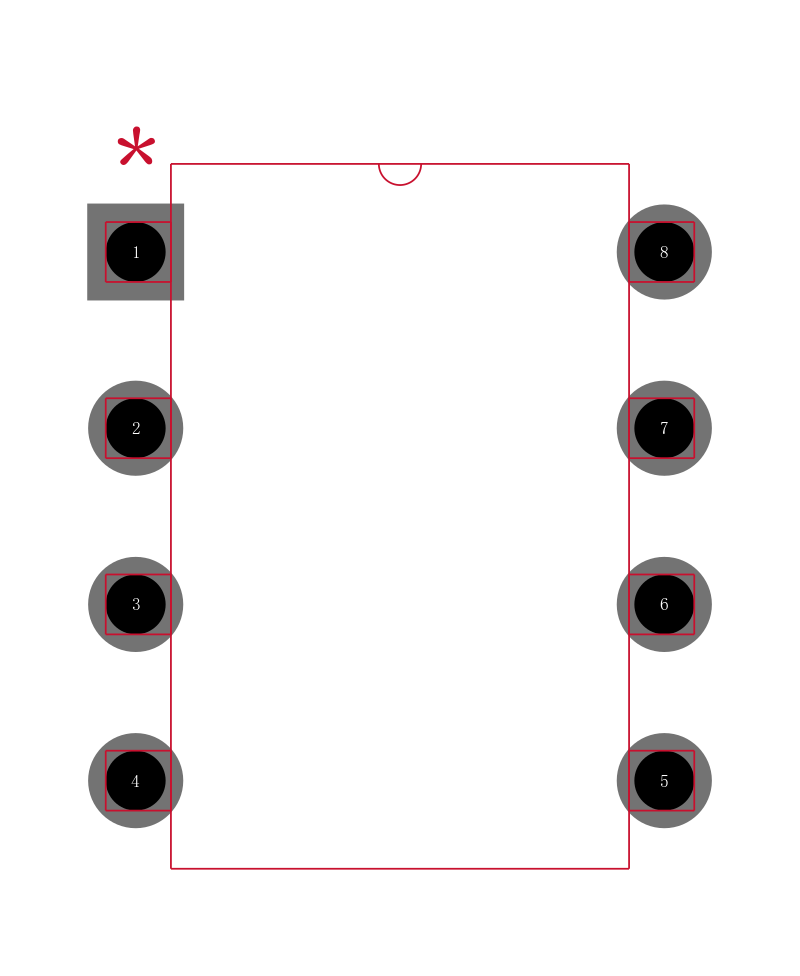

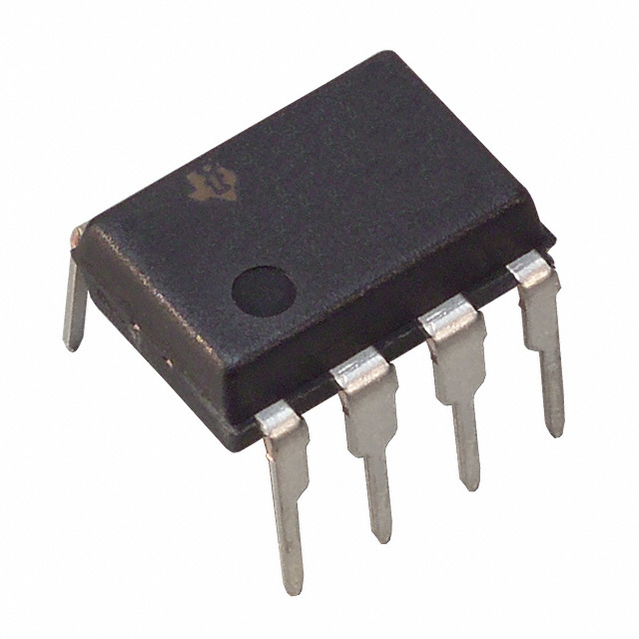

TEXAS INSTRUMENTS  TLC072CP  运算放大器, 双路, 10 MHz, 2个放大器, 16 V/µs, ± 2.25V 至 ± 8V, DIP, 8 引脚

The is a dual wide-bandwidth high-output-drive Operational Amplifier. The first members of "s new BiMOS general-purpose operational amplifier family are the TLC07x. The BiMOS family concept is simple - provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher AC and DC performance. With performance rated from 4.5 to 16V across commercial 0 to 70°C. Familiar features like offset nulling pins and new features like MSOP PowerPAD. Developed in TI"s patented LBC3 BiCMOS process, the new BiMOS amplifier combine a very high input impedance low-noise CMOS front end with a high-drive bipolar output stage, thus providing the optimum performance features of both. AC performance improvements over the TL07x BiFET predecessors include a bandwidth of10 MHz an increase of 300% and voltage noise of 7nV/√Hz an improvement of 60%.

.

1.9mA/channel Supply current

.

125µA/channel Ultralow power shutdown mode

.

7nV/√Hz Low input noise voltage

.

60µV Input offset voltage
