TBJE477M010LRSB0023概述

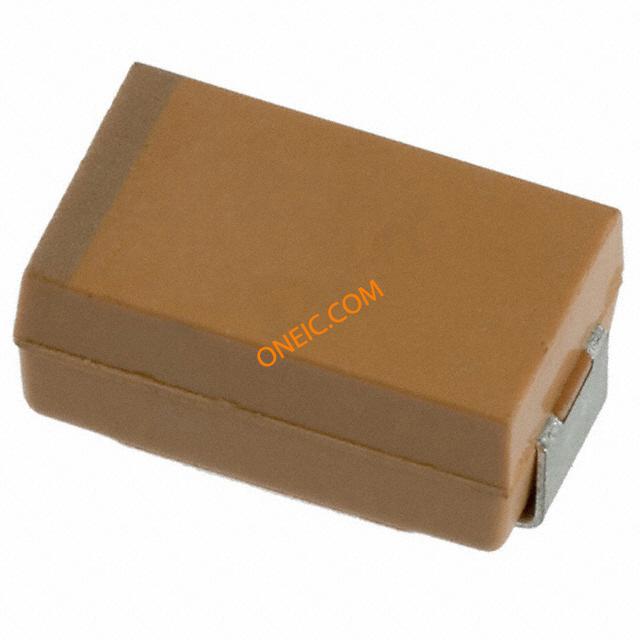

CAP TANT 470uF 20% 10V 2917

The low leakage current characteristic of this solid tantalum capacitor from makes it suitable for sample and hold circuit applications. It can withstand a voltage of 10 VDC. Its leakage current is 47 μA. This solid capacitor has a maximum operating temperature of 125 °C. It is reliable with a failure rate grade of B. It has a tolerance of 20%. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. Its capacitance value is 470uF.

TBJE477M010LRSB0023中文资料参数规格
技术参数

电容 470 μF

等效串联电阻ESR 50 mΩ

容差 ±20 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 10 V

封装参数

安装方式 Surface Mount

封装 7343

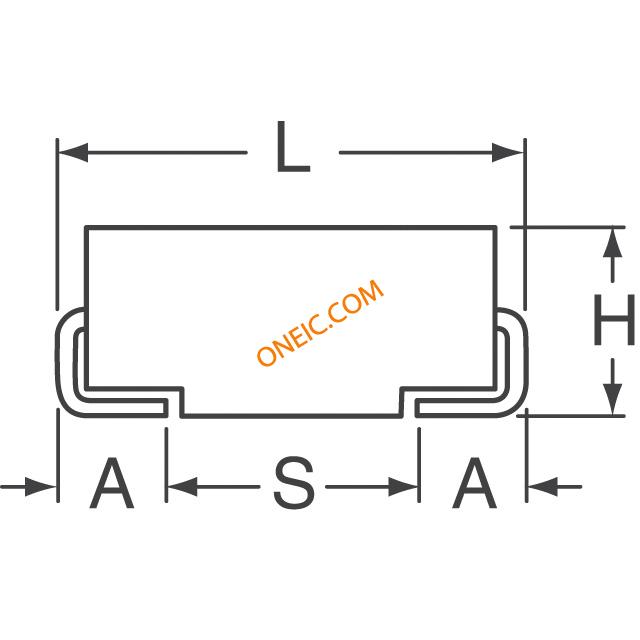

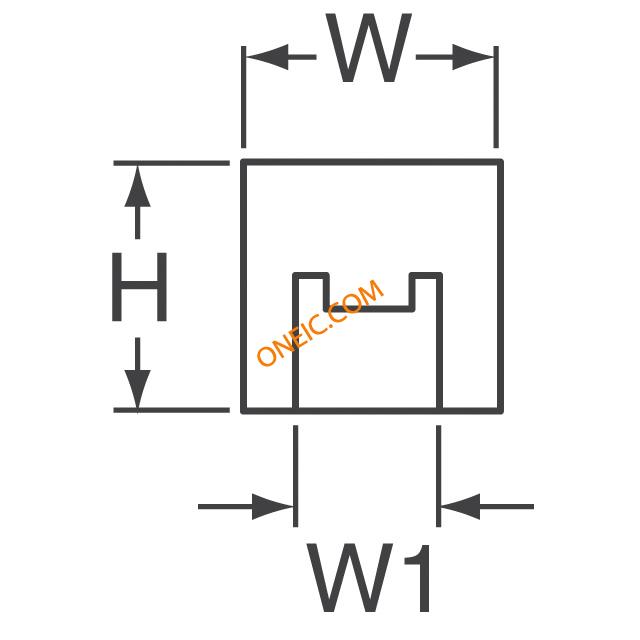

外形尺寸

高度 4.1 mm

封装 7343

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

在线购买TBJE477M010LRSB0023
型号: TBJE477M010LRSB0023
制造商: AVX 艾维克斯
描述:CAP TANT 470uF 20% 10V 2917
