0.9 Ω双SPST模拟开关5 -V / 3.3 -V 2路模拟开关 0.9-Ω DUAL SPST ANALOG SWITCH 5-V/3.3-V 2-CHANNEL ANALOG SWITCH
The TS5A23166 device is a dual single-pole single-throw SPST analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A23166 device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. The TS5A23166 device has excellent total harmonic distortion THD performance and consumes very low power. These features make this device suitable for portable audio applications.
立创商城:
TS5A23166YZTR
德州仪器TI:
0.9-Ω on-state resistance, 5-V, 1:1 SPST, 2-channel analog switch active high
得捷:
IC SWITCH DUAL SPST 8DSBGA
贸泽:
模拟开关 IC 0.9-Ohm Dual SPST Analog Switch
艾睿:
Analog Switch Dual SPST 8-Pin DSBGA T/R
安富利:
Analog Switch Dual SPST 8-Pin DSBGA T/R
Chip1Stop:
Analog Switch Dual SPST 8-Pin DSBGA T/R
Verical:
Analog Switch Dual SPST 8-Pin DSBGA T/R
输出接口数 2
触点类型 SPST
供电电流 10 nA
电路数 2
通道数 2
位数 2
电压波节 1.80 V, 2.50 V, 3.00 V, 3.30 V, 5.00 V
带宽 150 MHz
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 150 MHz
安装方式 Surface Mount
引脚数 8

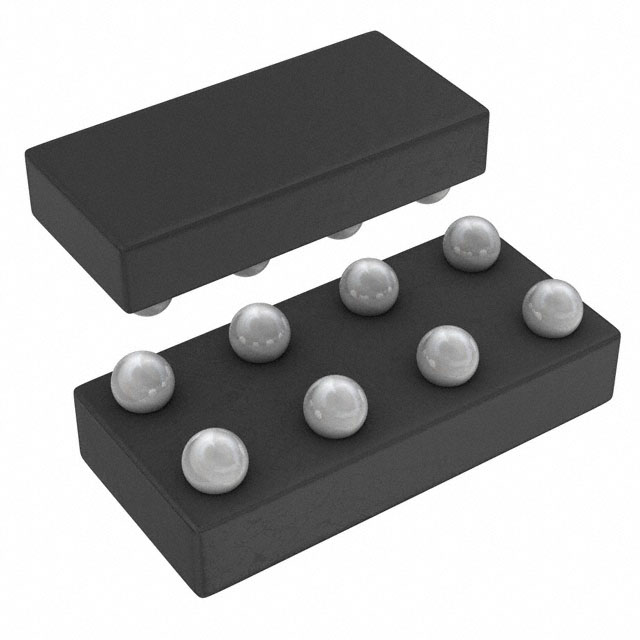

封装 UFBGA-8

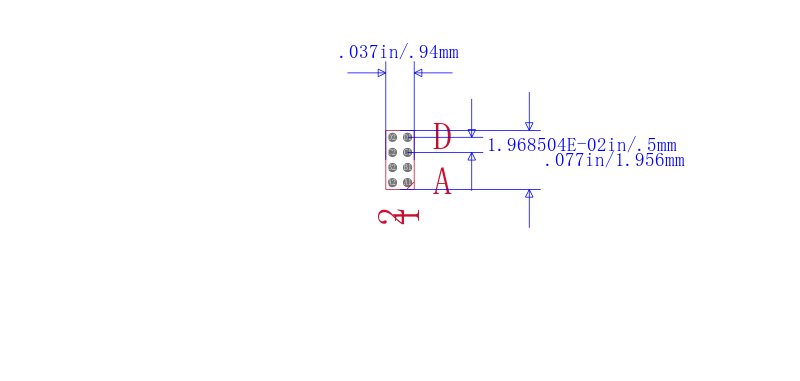

长度 1.9 mm
宽度 0.9 mm
高度 0.48 mm
封装 UFBGA-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS5A23166YZTR TI 德州仪器 | 当前型号 | 当前型号 |
TS5A23166YZPR 德州仪器 | 完全替代 | TS5A23166YZTR和TS5A23166YZPR的区别 |
TS5A23167YZPR 德州仪器 | 功能相似 | TS5A23166YZTR和TS5A23167YZPR的区别 |
