TS3V330DGVR

具有低导通电阻四路SPDT高带宽视频开关 QUAD SPDT WIDE-BANDWIDTH VIDEO SWITCH WITH LOW ON-STATE RESISTANCE

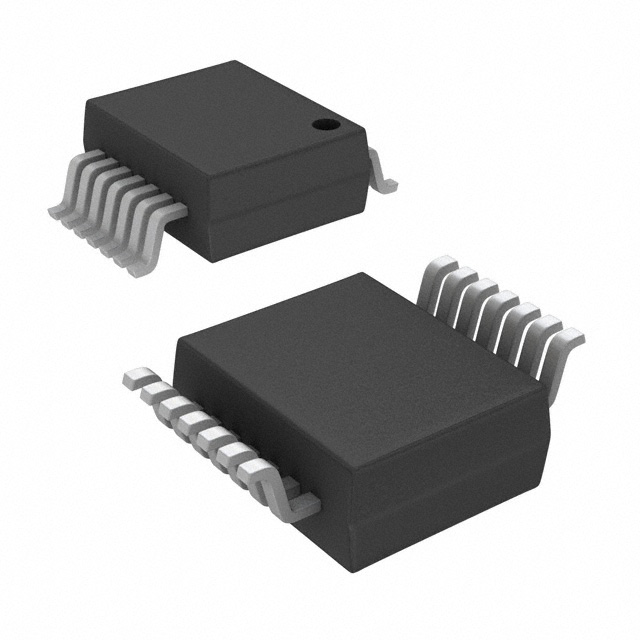

Video Switch IC 4 Channel 16-TVSOP

立创商城:
TS3V330DGVR

德州仪器TI:
3.3-V, 2:1 SPDT, 4-channel video switch

得捷:
IC MUX/DEMUX VID SW QUAD 16TVSOP

贸泽:
Video Switch ICs Quad SPDT Wide BW Vid Sw

艾睿:
Analog Switch Quad SPDT 16-Pin TVSOP T/R

安富利:
* Low Differential Gain and Phase DG = 0.82%, DP = 0.1 Degree Typ* Wide Bandwidth BW = 300 MHz Min* Low Crosstalk XTALK = -80 dB Typ* Low Power Consumption ICC = 10 µA Max* Bidirectional Data Flow With Near-Zero Propagation Delay* Low ON-State Resistance ron = 3 Ω Typ* Rail-to-Rail Switching on Data I/O Ports 0 to VCC* VCC Operating Range From 3 V to 3.6 V* Ioff Supports Partial-Power-Down Mode Operation* Data and Control Inputs Provide Undershoot Clamp Diode* Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II* ESD Performance Tested Per JESD 22 * 2000-V Human-Body Model A114-B, Class II * 1000-V Charged-Device Model C101* Suitable for Both RGB and Composite-Video Switching

Chip1Stop:
Analog Switch Quad SPDT 16-Pin TVSOP T/R

Verical:
Analog Switch/Analog Multiplexer Quad 1:2 16-Pin TVSOP T/R

Win Source:
IC MUX/DEMUX VID SW QUAD 16TVSOP
