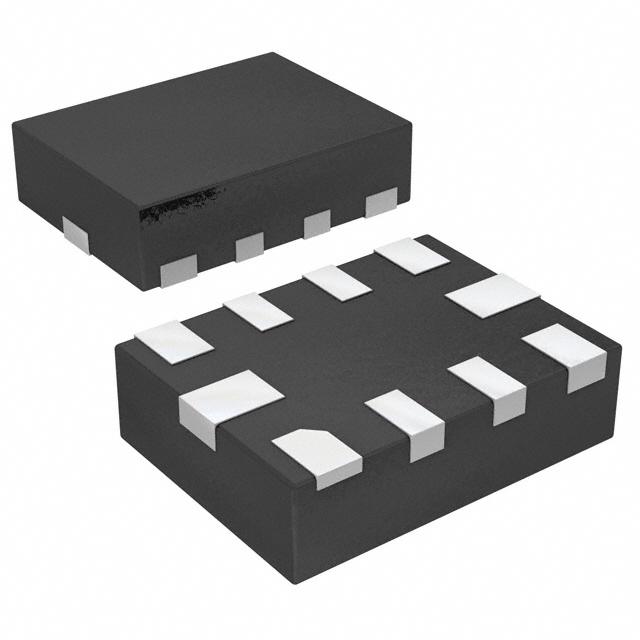

TS3USB221AQRSERQ1

ESD保护，高速USB 2.0 （ 480 Mbps）的1：单ENABLE 2复用器/解复用器开关 ESD PROTECTED, HIGH-SPEED USB 2.0 480-Mbps 1:2 MULTIPLEXER/DEMULTIPLEXER SWITCH WITH SINGLE ENABLE

Description

The TS3USB221A-Q1 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in automotive USB hubs or controllers with limited USB I/Os. The wide bandwidth 900 MHz of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 480 Mbps.

Features

• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

   – Device Temperature Grade 1: –40°C to 125°C

      Ambient Operating Temperature Range

   – Device HBM ESD Classification Level H2

   – Device CDM ESD Classification Level C5

• VCC Operation at 2.5 V to 3.3 V

• VI/O Accepts Signals Up to 5.5 V

• 1.8-V Compatible Control-Pin Inputs

• Low-Power Mode When OE Is Disabled 1 µA

• rON = 16 Ω Maximum

• ΔrON = 0.2 Ω Typical

• Cioon = 6 pF Typical

• Low Power Consumption 30 µA Maximum

• High Bandwidth 900 MHz Typical

• ESD Performance Tested Per JESD 22

   – 7000-V Human-Body Model A114-B, Class II

   – 1000-V Charged-Device Model C101

• ESD Performance I/O to GND Per JESD 22

   – 12-kV Human-Body Model

Applications

• Routing High Speed USB Signals

• Automotive USB Hubs

• Phone-Controlled Automotive Infotainment
