1.11V,微功耗,低偏置电流运放
The TLV278x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV278x takes the minimum operating supply voltage down to 1.8 V over the extended industrial temperature range 40°C to 125°C while adding the rail-to-rail output swing feature. The TLV278x also provides 8 MHz bandwidth from only 650 µA of supply current. The maximum recommended supply voltage is 3.6 V, which allows the devices to be operated from ±1.8 V supplies down to ±0.9 V two rechargable cells.
The combination of wide bandwidth, low noise, and low distortion makes it ideal for high speed and high resolution data converter applications.
All members are available in PDIP, SOIC, and the newer, smaller SOT-23 singles, MSOP duals, and TSSOP quads.
供电电流 650 µA
电路数 2
通道数 2
耗散功率 1600 mW
共模抑制比 70 dB
输入补偿漂移 8.00 µV/K
带宽 8.00 MHz
转换速率 5.00 V/μs
增益频宽积 8 MHz
输入补偿电压 250 µV
输入偏置电流 2.5 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 8 MHz
耗散功率Max 1600 mW
共模抑制比Min 70 dB
安装方式 Through Hole
引脚数 14

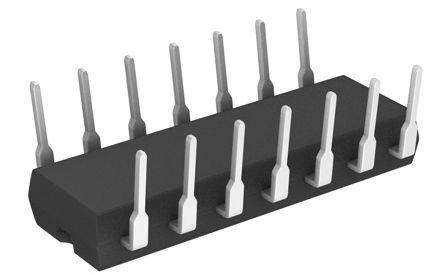

封装 PDIP-14
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
