TS12A44513DR

TEXAS INSTRUMENTS  TS12A44513DR  模拟开关, 四通道, SPST, 4 放大器, 10 ohm, 2V 至 12V, SOIC, 14 引脚

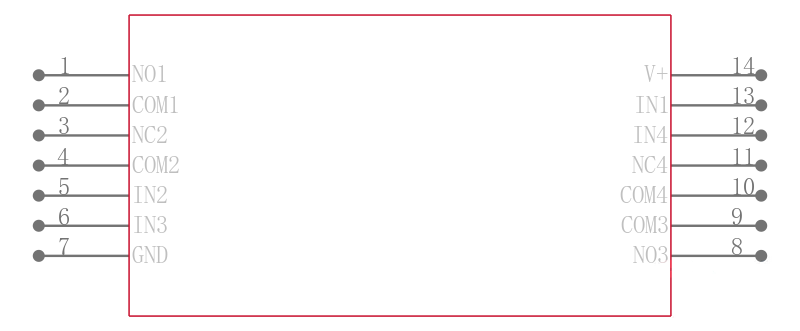

The TS12A44513, TS12A44514, and TS12A44515 devices have four bidirectional single-pole single-throw SPST single-supply CMOS analog switches. The TS12A44513 has two normally closed NC switches and two normally open NO switches, the TS12A44514 has four NO switches, and the TS12A44515 has four NC switches.

These CMOS switches may operate continuously with a single supply from 2 V to 12 V and can handle rail-to-rail analog signals. The OFF-leakage current maximum is only 1 nA at 25°C or 10 nA at 85°C.

When using a 5-V supply, all digital inputs have 0.8-V to 2.4-V logic thresholds, ensuring TTL/CMOS-logic compatibility.
