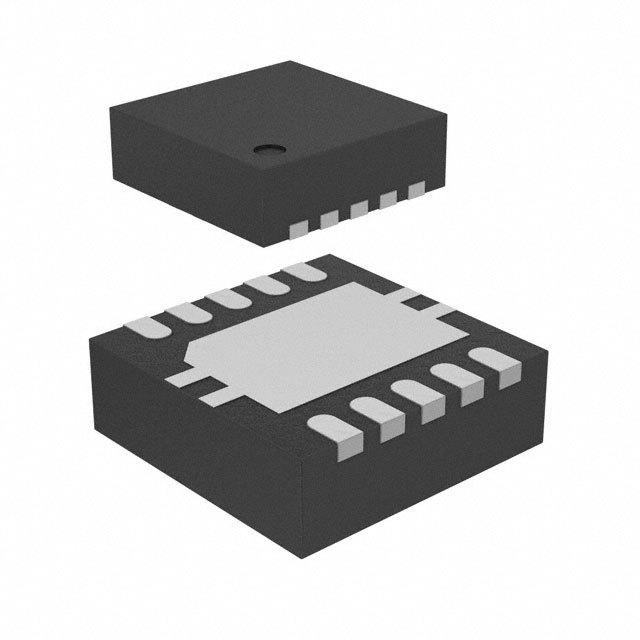

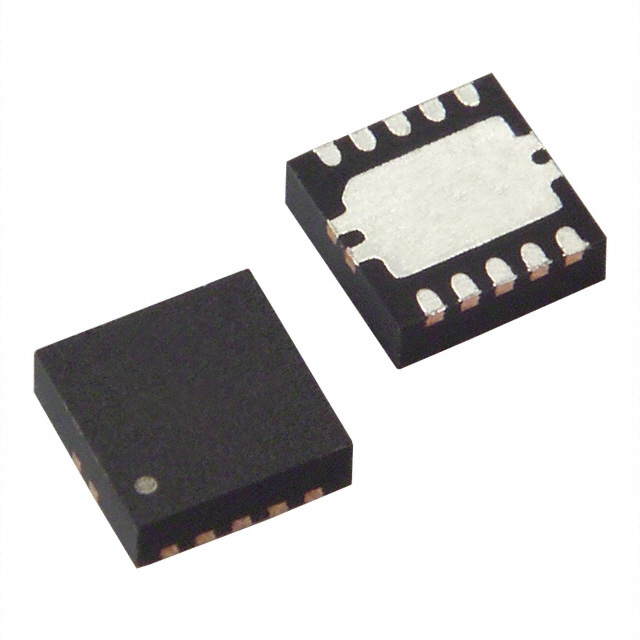

TS5A22362DRCT-NM

具有负信号处理功能的 0.65V、2:1 SPDT、2 通道模拟开关 10-VSON -40 to 85

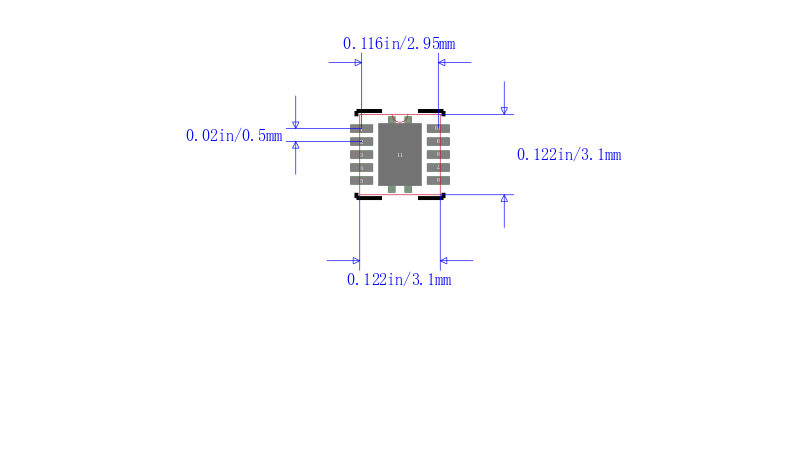

The TS5A22362 is a bidirectional, 2-channel single-pole double-throw SPDT analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal swing capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion THD performance are ideal for audio applications. The 3.00 mm × 3.00 mm DRC package is also available as a nonmagnetic package for medical imaging application.
