轨到轨,广角带,低功耗运算放大器 Rail-to-Rail, Wide-Band, Low-Power Operational Amplifiers
通用 放大器 1 电路 满摆幅 SOT-23-5
得捷:
IC OPAMP GP 1 CIRCUIT SOT23-5
艾睿:
Increase functionality to your instrumentation with this general purpose amplifier TSH70CLT OP amp from STMicroelectronics. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.5 V and maximum of ±6 V. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses one or two power supplies. It has a single channel per chip.
安富利:
OP Amp Single GP R-R O/P ±6V/12V 5-Pin SOT-23 T/R
Chip1Stop:
OP Amp Single GP R-R O/P ±6V/12V 5-Pin SOT-23 T/R
DeviceMart:
IC OP AMP SGL LP WIDE SOT23-5
Win Source:
IC OPAMP GP 65MHZ RRO SOT23-5
输出电流 ≤55 mA
供电电流 9.8 mA
电路数 1
通道数 1
共模抑制比 72 dB
带宽 90.0 MHz
转换速率 85.0 V/μs
增益频宽积 65 MHz
输入补偿电压 800 µV
输入偏置电流 6 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
3dB带宽 100 MHz
增益带宽 65 MHz
共模抑制比Min 72 dB
电源电压Max 12 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 5

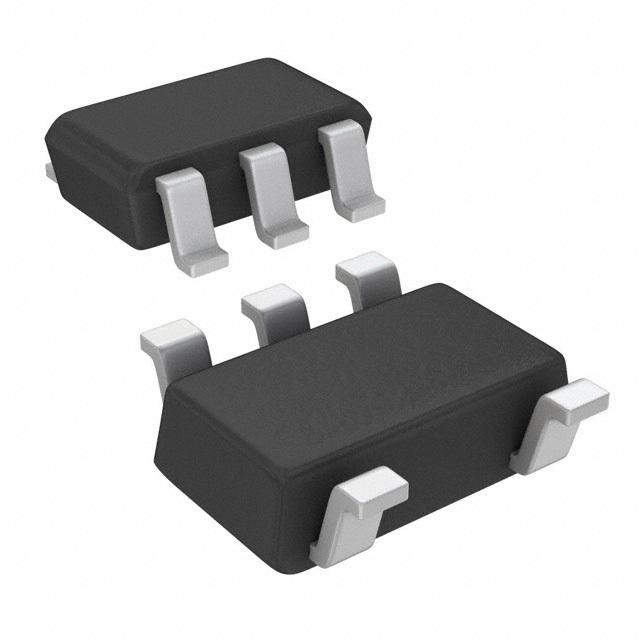

封装 SOT-23-5
宽度 1.75 mm
封装 SOT-23-5
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSH70CLT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LT6205CS5#TRMPBF 凌力尔特 | 功能相似 | TSH70CLT和LT6205CS5#TRMPBF的区别 |
LT6205IS5#TRMPBF 凌力尔特 | 功能相似 | TSH70CLT和LT6205IS5#TRMPBF的区别 |
LT6205CS5#TR 凌力尔特 | 功能相似 | TSH70CLT和LT6205CS5#TR的区别 |
