TD62002AP

PDIP NPN 50V 0.5A

The TD62001P / AP / F / AF Series are high−voltage, high−current darlington drivers comprised of seven NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads.

Applications include relay, hammer, lamp and display LED drivers.

FEATURES

Output current single output 500 mA MAX.

High sustaining voltage output

   35 V MIN. TD62001P / F Series

   50 V MIN. TD62001AP / AF Series

Output clamp diodes

Inputs compatible with various types of logic

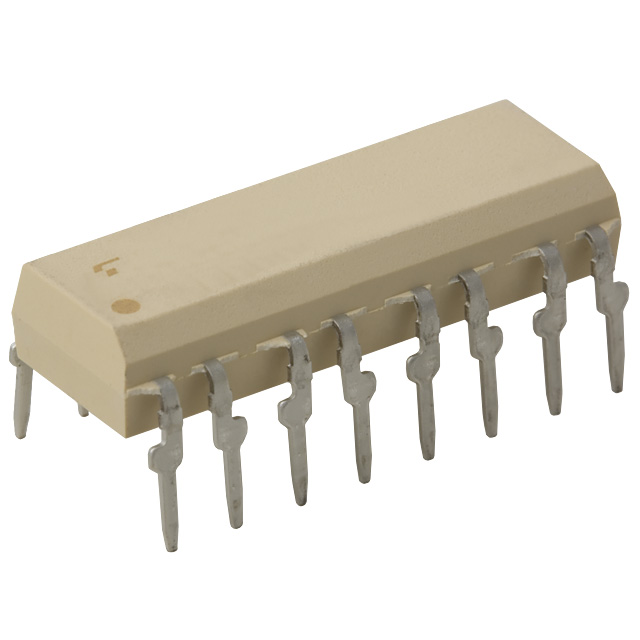

Package Type−P, AP :  DIP−16 pin

Package Type−F, AF :  SOP−16 pin
