塑料中功率互补硅晶体管 Plastic Medium-Power Complementary Silicon Transistors
Look no further than "s PNP Darlington transistor, which can amplify the signal to provide higher current gains. This Darlington transistor array"s maximum emitter base voltage is 5 V. This product"s maximum continuous DC collector current is 2 A, while its minimum DC current gain is 1000@1A@4 V|500@2A@4V. It has a maximum collector emitter saturation voltage of 2.5@8mA@2A V. Its maximum power dissipation is 2000 mW. This product comes in rail packaging to keep individual parts separated and protected. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V. This Darlington transistor array has an operating temperature range of -65 °C to 150 °C.
额定电压DC -60.0 V
额定电流 7.40 A
输出电压 60 V
输出电流 2 A
极性 PNP
耗散功率 2 W
击穿电压集电极-发射极 60 V
热阻 62.5℃/W RθJA
集电极最大允许电流 2A
最小电流放大倍数hFE 1000 @1A, 4V
额定功率Max 2 W
直流电流增益hFE 1000
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 2000 mW
输入电压 5 V
安装方式 Through Hole
引脚数 3

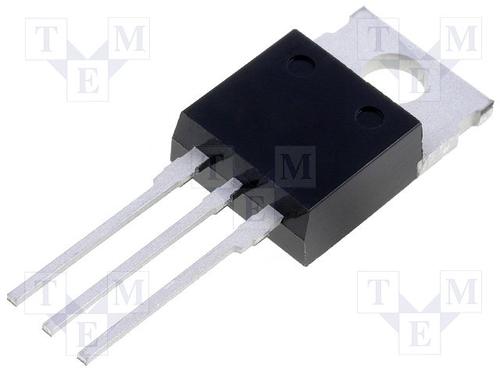

封装 TO-220-3
长度 10.28 mm
宽度 4.83 mm
高度 15.75 mm
封装 TO-220-3
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TIP115G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
TIP32CG 安森美 | 类似代替 | TIP115G和TIP32CG的区别 |
TIP41CG 安森美 | 类似代替 | TIP115G和TIP41CG的区别 |
TIP115 安森美 | 类似代替 | TIP115G和TIP115的区别 |
