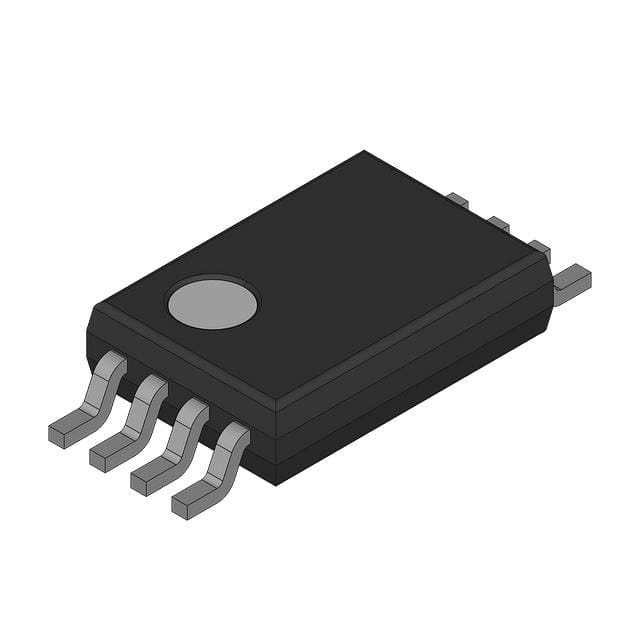

TL062CPWRG4

低功耗JFET输入运算放大器 LOW-POWER JFET-INPUT OPERATIONAL AMPLIFIERS

description/ordering information

The JFET-input operational amplifiers of the TL06_ series are designed as low-power versions of the TL08_ series amplifiers. They feature high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. The TL06_ series features the same terminal assignments as the TL07_ and TL08_ series. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in an integrated circuit.

Very Low Power Consumption

Typical Supply Current. . . 200 µA Per Amplifier

Wide Common-Mode and Differential Voltage Ranges

Low Input Bias and Offset Currents

Common-Mode Input Voltage Range Includes VCC+

Output Short-Circuit Protection

High Input Impedance. . . JFET-Input Stage

Internal Frequency Compensation

Latch-Up-Free Operation

High Slew Rate. . . 3.5 V/µs Typ
