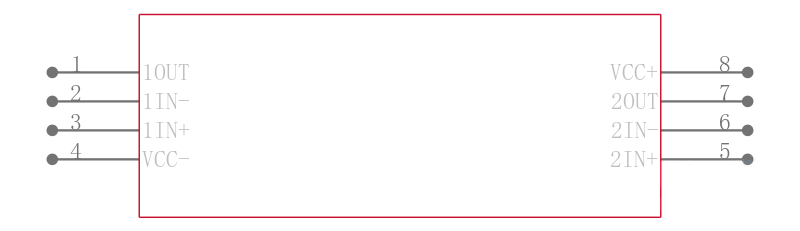

TLV2362IDRG4

Dual High-Performance, Low-Voltage Operational Amplifier 8-SOIC -40℃ to 85℃

description/ordering information

The TLV236x devices are high-performance dual operational amplifiers built using an original Texas Instruments bipolar process. These devices can be operated at a very low supply voltage ±1 V, while maintaining a wide output swing. The TLV236x devices offer a dramatically improved dynamic range of signal conditioning in low-voltage systems. The TLV236x devices also provide higher performance than other general-purpose operational amplifiers by combining higher unity-gain bandwidth and faster slew rate. With their low distortion and low-noise performance, these devices are well suited for audio applications.

Low Supply-Voltage

  Operation . . . VCC = ±1 V Min

Wide Bandwidth . . . 7 MHz Typ at VCC± = ±2.5 V

High Slew Rate . . . 3 V/µs Typ at VCC± = ±2.5 V

Wide Output Voltage Swing . . . ±2.4 V Typ at VCC± = ±2.5 V, RL = 10 kΩ

Low Noise . . . 8 nV/√Hz Typ at f = 1 kHz
