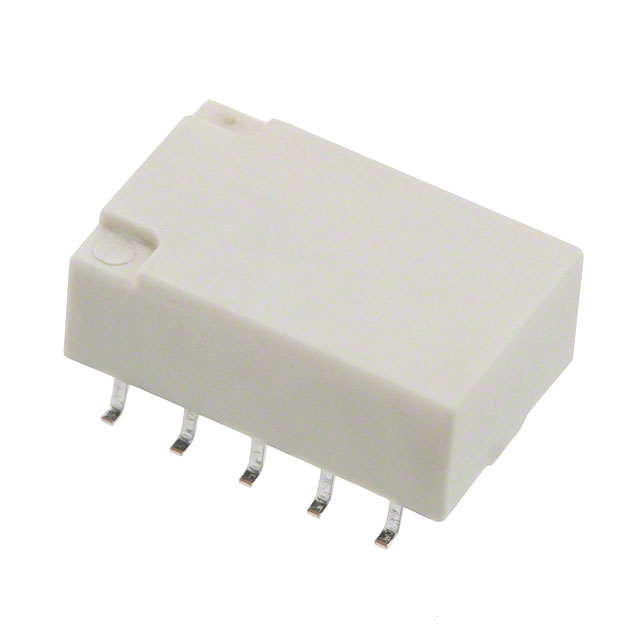

Electromechanical Relay 5VDC 357Ω 2A DPDT 14x9.3x7.5mm SMD General Purpose Relay
5 mm Low profile, 2 Form C and 2 A surface mount type relays
FEATURES
1\. Flat compact size
14.0 L × 9.0 W × 5.0 H mm
.551 L × .354 W × .197 H inch
2\. Nominal operating power:
High sensitivity of 140mW 2 Form C single side stable type
3\. Suitable for SMD automatic insertion SA type
With a height of 5.6 mm .220 inch, the relays meet JIS C 0806 specifications.
4\. DIL terminal array enables use of IC sockets
5\. Low thermal electromotive forceapprox. 5 μV
[approx. 2 μV surface-mount type]
6\. Latching types also available
7\. Self-clinching terminal also available
8\. A range of surface-mount types is also available
SA: Low-profile surface-mount terminal type
SL: High connection reliability surface mount terminal type
SS: Space saving surface-mount terminal type
9\. M.B.B. contact types available
TYPICAL APPLICATIONS
1\. Telephone-related equipment
2\. Communications
3\. Measurement equipment
4\. OA equipment
5\. Industrial machines
