TMS320C10NL

数字信号处理器 DIGITAL SIGNAL PROCESSORS

introduction

The TMS32010 digital signal processor DSP, introduced in 1983, was the first DSP in the TMS320 family. From it has evolved this TMS320C1x generation of 16-bit DSPs. All ′C1x DSPs are object code compatible with the TMS32010 DSP. The ′C1x DSPs combine the flexibility of a high-speed controller with the numerical capability of an array processor, thereby offering an inexpensive alternative to multichip bit-slice processors.

•Performance Up to 8.77 MIPs

•All TMS320C1x Devices are Object Code Compatible

•144/256-Word On-Chip Data RAM

•1.5K/4K/8K-Word On-Chip Program ROM

•4K-Word On-Chip Program EPROM

TMS320E14/P14/E15/P15/E17/P17

•One-Time Programmable OTP Versions Available TMS320P14/P15/P17

•EPROM Code Protection for Copyright Security

•4K / 64K-Word Total External Memory at Full Speed

•32-Bit ALU/Accumulator

•16 ×16-Bit Multiplier With a 32-Bit Product

•0 to 16-Bit Barrel Shifter

•Eight Input/Output Channels

•Dual-Channel Serial Port

•Simple Memory and I/O Interface

•5-V and 3.3-V Versions Available TMS320LC15/LC17

•Commercial and Military Versions Available

•Operating Free-Air Temperature . . . 0°C to 70°C

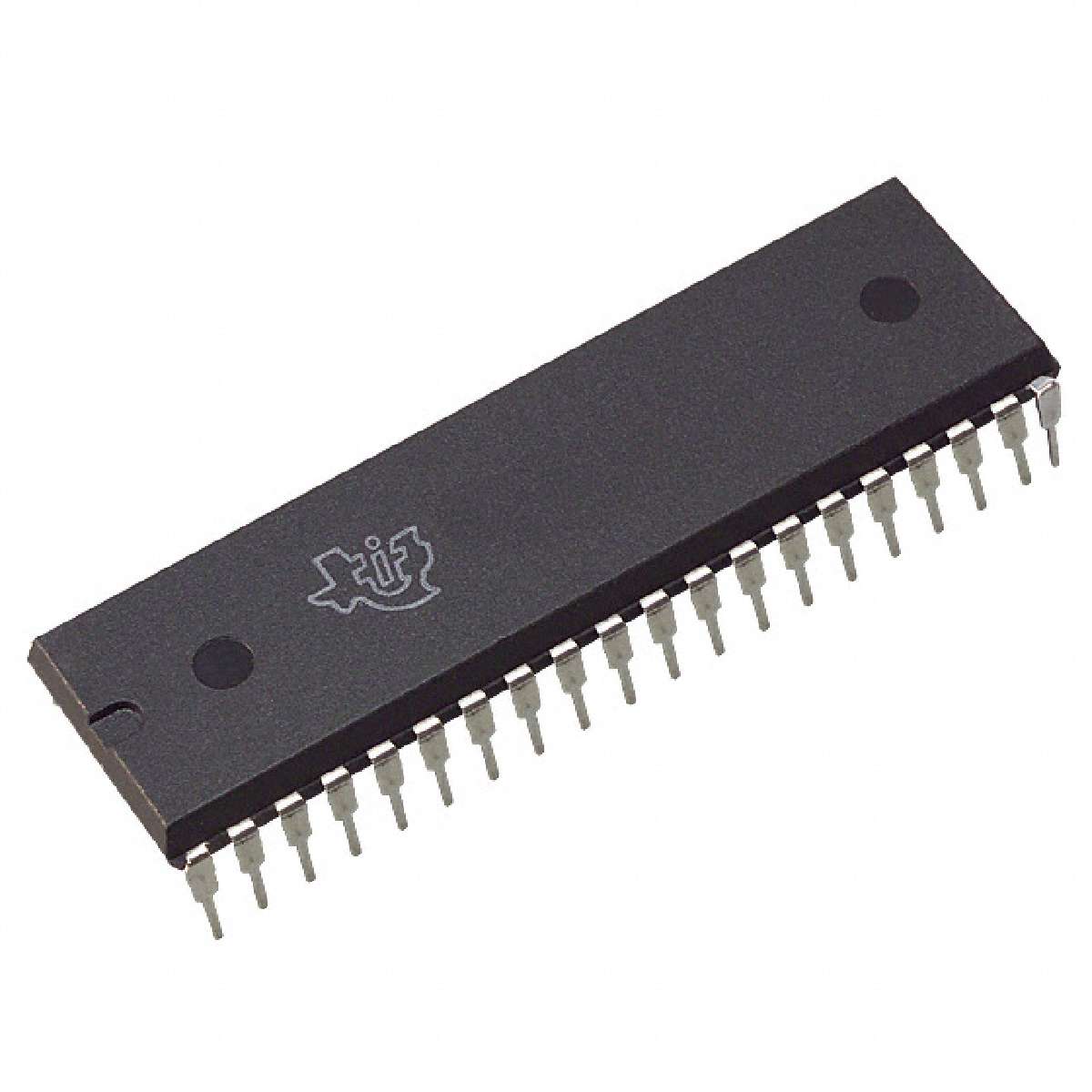

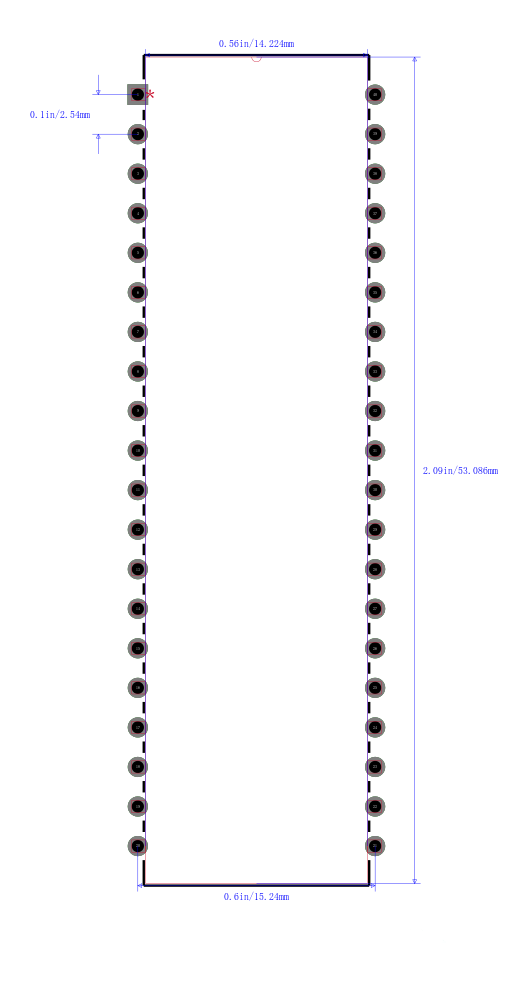

•Packaging: DIP, PLCC, Quad Flatpack, and CER-QUAD
