LinCMOSE可编程低功耗运算放大器 LinCMOSE PROGRAMMABLE LOW-POWER OPERATIONAL AMPLIFIERS
description
The TLC271 operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271 offers a bias-select mode that allows the user to select the best combination of power dissipation and ac performance for a particular application. These devices use Texas Instruments silicon-gate LinCMOS technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.
Input Offset Voltage Drift...Typically 0.1 µV/Month, Including the First 30 Days
Wide Range of Supply Voltages Over Specified Temperature Range:
0°C to 70°C...3 V to 16 V
–40°C to 85°C...4 V to 16 V
–55°C to 125°C...5 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail C-Suffix and I-Suffix Types
Low Noise. . . 25 nV/√HzTypically at f = 1 kHz High-Bias Mode
Output Voltage Range Includes Negative Rail
High Input Impedance...1012ΩTyp
ESD-Protection Circuitry
Small-Outline Package Option Also Available in Tape and Reel
Designed-In Latch-Up Immunity
输出电流 ≤30 mA
供电电流 950 µA
电路数 1
通道数 1
耗散功率 1 W
共模抑制比 65 dB
输入补偿漂移 1.80 µV/K
带宽 1.70 MHz
转换速率 3.60 V/μs
增益频宽积 2.2 MHz
输入补偿电压 900 µV
输入偏置电流 0.7 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
共模抑制比Min 65 dB
电源电压Max 16 V
电源电压Min 4 V
安装方式 Through Hole
引脚数 8

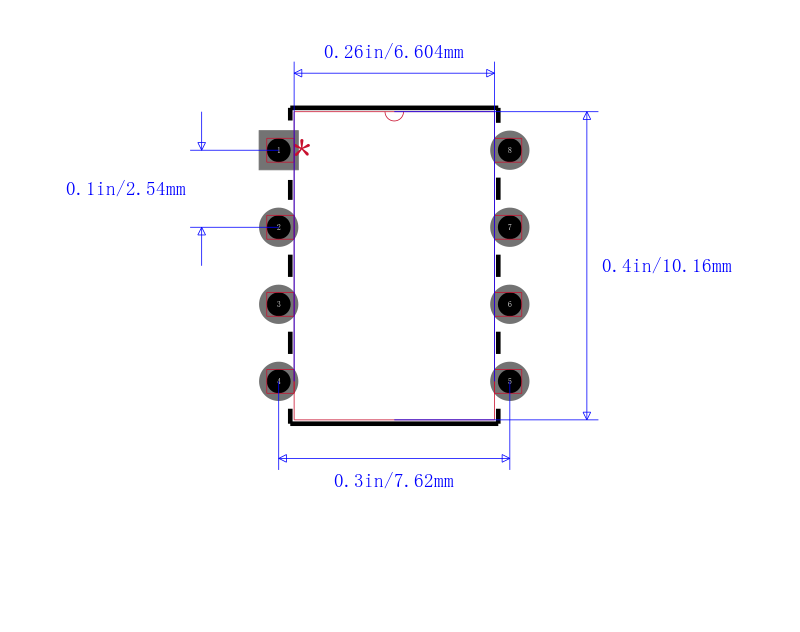

封装 PDIP-8
长度 9.81 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC271AIPE4 TI 德州仪器 | 当前型号 | 当前型号 |
TLC271AIP 德州仪器 | 类似代替 | TLC271AIPE4和TLC271AIP的区别 |
TLC272AID 德州仪器 | 功能相似 | TLC271AIPE4和TLC272AID的区别 |
TLV272IDR 德州仪器 | 功能相似 | TLC271AIPE4和TLV272IDR的区别 |
