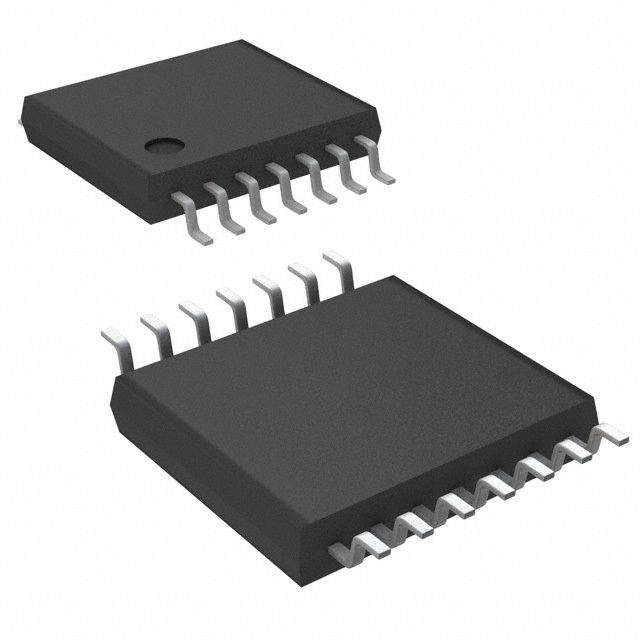

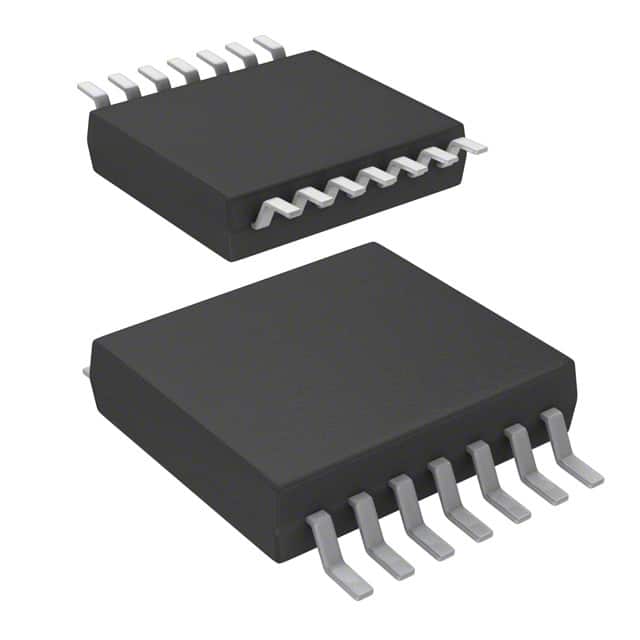

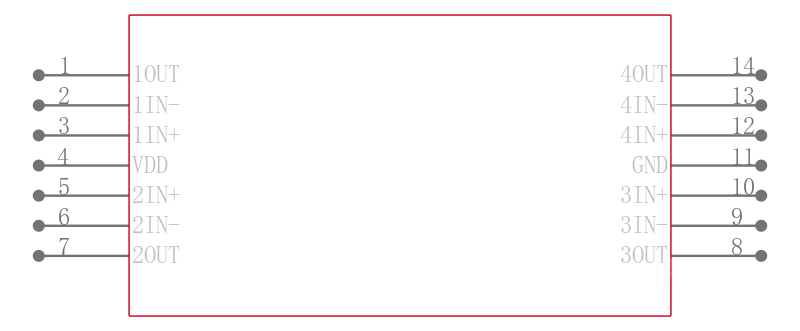

TLC274CPWRG4

该TLC274和TLC279四通道运算放大器结合了宽范围的输入失调电压等级的低失调电压漂移，高... The TLC274 and TLC279 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high...

description

The TLC274 and TLC279 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching that of general-purpose BiFET devices.

Trimmed Offset Voltage:

   TLC279. . . 900 µV Max at 25°C, VDD= 5 V

Input Offset Voltage Drift...Typicall 0.1 µV/Month, Including the First 30 Days

Wide Range of Supply Voltages Over Specified Temperature Range:

    0°C to 70°C...3 V to 16 V

    −40°C to 85°C...4 V to 16 V

   −55°C to 125°C...4 V to 16 V

Single-Supply Operation

Common-Mode Input Voltage Range Extends Below the Negative Rail C-Suffix and I-Suffix Versions

Low Noise...Typically 25 nV/√Hz at f = 1 kHz

Output Voltage Range Includes Negative Rail

High Input Impedance...1012ΩTyp

ESD-Protection Circuitry

Small-Outline Package Option Also Available in Tape and Reel

Designed-In Latch-Up Immunity
