T491A225K020AT

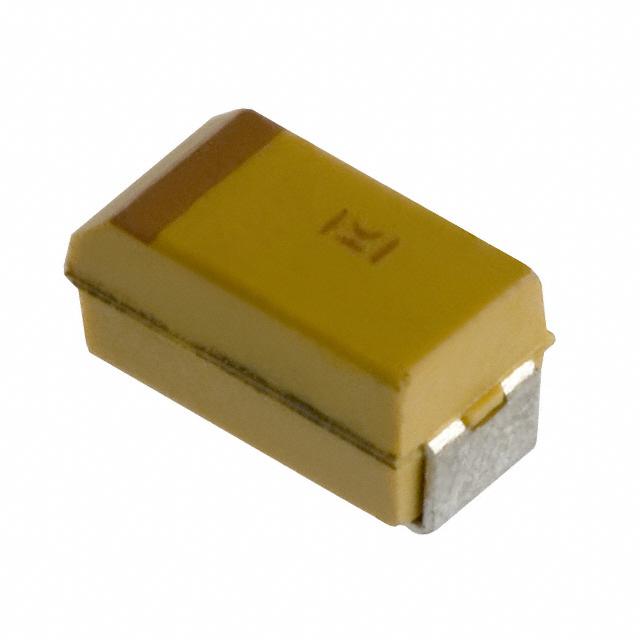

KEMET  T491A225K020AT  表面贴装钽电容, T491系列, 2.2 µF, ± 10%, 20 V, 1206 [3216 公制], A

钽器

得捷:
CAP TANT 2.2UF 10% 20V 1206

欧时:
### T491 系列Kemet T491 系列钽质表面安装电容器，专门设计用于自动表面安装过程和设备。 T491 结合了 Kemet 久经考验的固体钽技术，采用最新的材料、流程和自动化技术，能够提供高效且高度可靠的电容器。 T491 系列端接为 100% 表面无光泽镀锡，并提供出色的润湿特性以及与表面安装焊接系统的兼容性。对称的柔性接头 激光标记外壳 无卤素环氧 薄型外壳尺寸 符合 RoHS 标准，采用无铅端接 电容容差 | 10 % ---|--- 温度范围 | -55 至 +85°C 尺寸 mm --- 外壳代码 | L±0.2 | W±0.2 | H±0.2 | F±0.1 | S±0.3 | A 最小值 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 | 1.1 C | 6.0 | 3.2 | 2.5 | 2.2 | 1.3 | 2.5 D | 7.3 | 4.3 | 2.8 | 2.4 | 1.3 | 3.8 V | 7.3 | 4.3 | 2 | 2.4 | 1.3 | 3.8 X | 7.3 | 4.3 | 4.0 | 2.4 | 1.3 | 3.8 ### 注电容器上的黑色带指明正极接线端子![http://china.rs-online.com/largeimages/L262425-01.gif]http://china.rs-online.com/largeimages/L262425-01.gif ### SMT 125°C

立创商城:
2.2uF ±10% 20V

e络盟:
表面贴装钽电容, 2.2 µF, 20 V, 1206 [3216 公制], T491系列, ± 10%, -55 °C

艾睿:

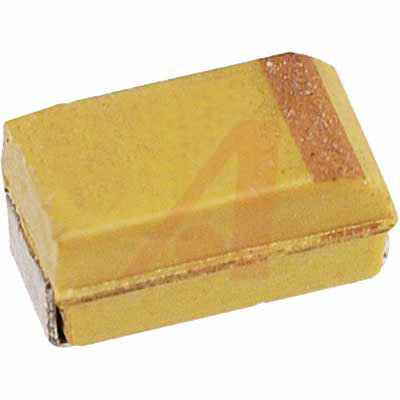

This T491A225K020AT solid tantalum capacitor from Kemet utilizes a three-layer conductor-dielectric-conductor capacitor structure. It can withstand a voltage of 20 VDC. Its leakage current is 0.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. Its capacitance value is 2.2uF.

Allied Electronics:
2.2uF Solid MnO2 Tantalum Electrolytic Capacitor, 20 V dc +/-10%, T491 Series

安富利:
Cap Tant Solid 2.2uF 20V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 7 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 2.2uF 20V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 7 Ohm 125 C T/R

TME:

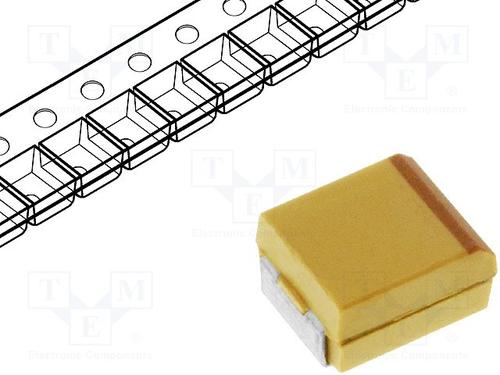

Capacitor: tantalum; 2.2uF; 20VDC; SMD; Case: A; 1206; ±10%

Verical:
Cap Tant Solid 2.2uF 20V A CASE 10% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 6 Ohm 125C Automotive T/R

Newark:
# KEMET  T491A225K020AT  Surface Mount Tantalum Capacitor, 2.2 µF, 20 V, T491 Series, ± 10%, 1206 [3216 Metric]
