5脚封装,低功耗,中速
通用 放大器 电路 满摆幅 SOT-23-5
得捷:
IC OPAMP GP 1 CIRCUIT SOT23-5
立创商城:
TLV2721IDBVT
德州仪器TI:
Single, 10-V, 510-kHz operational amplifier
贸泽:
Operational Amplifiers - Op Amps Single LinCMOS R-To-R Very Lo-Power
艾睿:
If you need your circuit to amplify a voltage signal then this general purpose amplifier TLV2721IDBVT OP amp from Texas Instruments is perfect for you! Its maximum power dissipation is 150 mW. Its typical dual supply voltage is ±3 V, with a minimum of ±1.35 V and maximum of ±5 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a single channel per chip. This device is made with linCMOS technology. This device uses one or two power supplies.
安富利:
OP Amp Single GP R-R O/P ±5V/10V 5-Pin SOT-23 T/R
Chip1Stop:
Low PowerSingle LinCMOSTM Rail-To-Rail Very Low-Power Operational Amplifier OP Amp Single GP R-R O/P ±5V/10V 5-Pin SOT-23 T/R
Verical:
Op Amp Single Low Power Amplifier R-R O/P ±5V/10V 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TLV2721IDBVT Operational Amplifier, Single, 1 Amplifier, 510 kHz, 0.25 V/µs, 2.7V to 10V, SOT-23, 5 Pins
力源芯城:
单路,5脚封装,低功耗,中速
Win Source:
Advanced LinCMOS RAIL-TO-RAIL VERY LOW-POEWR SINGLE OPERATIONAL AMPLIFIERS
输出电流 ≤50 mA
供电电流 110 µA
电路数 1
通道数 1
耗散功率 150 mW
共模抑制比 70 dB
输入补偿漂移 1.00 µV/K
带宽 510 kHz
转换速率 250 mV/μs
增益频宽积 510 kHz
输入补偿电压 500 µV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.51 MHz
耗散功率Max 150 mW
共模抑制比Min 70 dB
电源电压 2.7V ~ 10V
电源电压Max 10 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 5

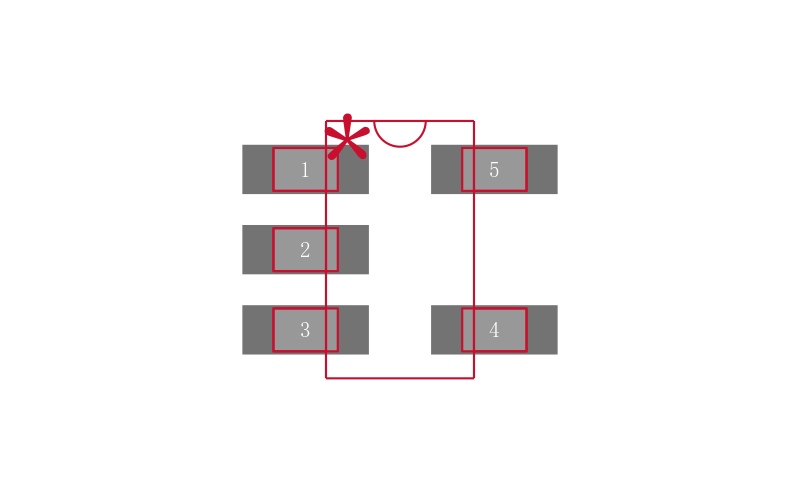

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV2721IDBVT TI 德州仪器 | 当前型号 | 当前型号 |
TLV2721CDBVR 德州仪器 | 类似代替 | TLV2721IDBVT和TLV2721CDBVR的区别 |
TLV2721IDBVR 德州仪器 | 类似代替 | TLV2721IDBVT和TLV2721IDBVR的区别 |
TLV2721CDBVT 德州仪器 | 类似代替 | TLV2721IDBVT和TLV2721CDBVT的区别 |
