TLV2760IDBVR

家庭1.8 V微功耗轨至轨输入/输出运算与关闭放大器DOWN FAMILY OF 1.8 V MICROPOWER RAIL-TO-RAIL INPUT/OUTPUT OPERATIONAL AMPLIFIERS WITH SHUT DOWN

description

The TLV276x single supply operational amplifiers provide 500 kHz bandwidth from only 20 µA while operating down to 1.8 V over the industrial temperature range. The maximum recommended supply voltage is 3.6 V, which allows the devices to be operated from ±1.8 V supplies down to ±0.9 V two AA or AAA cells. The devices have been characterized at 1.8 V end of life of 2 AAA cells and at 2.4 V nominal voltage of 2 NiCd/NiMH cells. The TLV276x have rail-to-rail input and output capability which is a necessity at 1.8 V.

Low Supply Voltage. . . 1.8 V to 3.6 V

Very Low Supply Current...20 µA per channel

Ultralow Power Shut-Down Mode

  − IDDSHDN= 10 nA/Channel

CMOS Rail-to-Rail Input/Output

Input Common-Mode Voltage Range . . . −0.2 V to VDD + 0.2 V

Input Offset Voltage . . . 550 µV

Wide Bandwidth. . . 500 kHz

Slew Rate. . . 0.20 V/µs

Specified Temperature Range:

  0°C to 70°C . . . Commercial Grade

  −40°C to 85°C . . . Industrial Grade

Ultrasmall Packaging

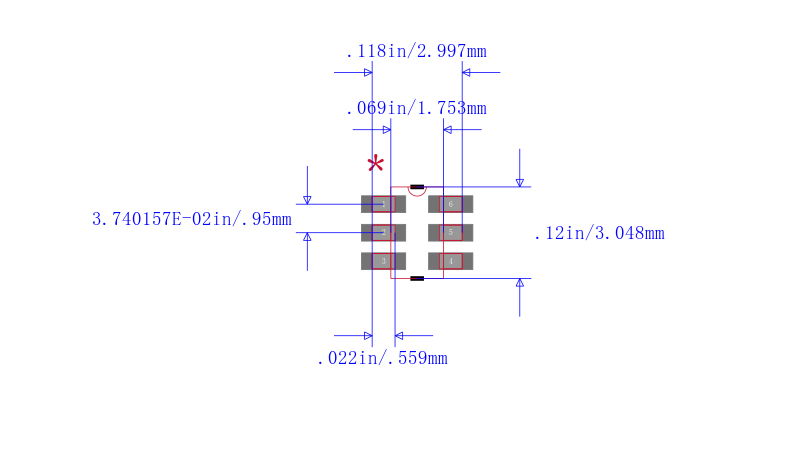

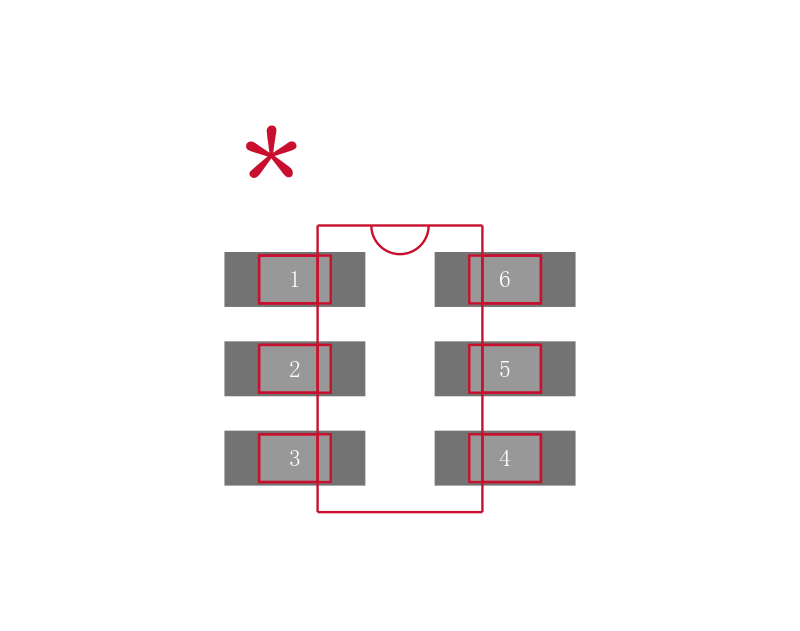

  5 or 6 Pin SOT-23 TLV2760/1

  8 or 10 Pin MSOP TLV2762/3

Universal Op-Amp EVM
