TEXAS INSTRUMENTS TLE2071CDG4 运算放大器, 单路, 10 MHz, 1个放大器, 38 V/µs, ± 2.25V 至 ± 19V, SOIC, 8 引脚
The is a low-noise high-speed JFET-input Operational Amplifier more than double the bandwidth and triple the slew rate of the TL07x and TL08x families of BiFET operational amplifier. Texas Instruments Excalibur process yields a typical noise floor of 11.6nV/√Hz, 17nV/√Hz ensured maximum, offering immediate improvement in noise-sensitive circuits designed using the TL07x. The TLE207x also has wider supply voltage rails, increasing the dynamic signal range for BiFET circuits to ±19V. On-chip zener trimming of offset voltage yields precision grades for greater accuracy in DC-coupled applications. The TLE207x is pin-compatible with lower performance BiFET operational amplifier for ease in improving performance in existing designs. BiFET operational amplifier offer the inherently higher input impedance of the JFET-input transistors, without sacrificing the output drive associated with bipolar amplifier. It is suited for interfacing with high-impedance sensors.
电源电压DC 38.0 V
供电电流 1.7 mA
电路数 1
通道数 1
针脚数 8
共模抑制比 70 dB
输入补偿漂移 3.20 µV/K
带宽 10 MHz
转换速率 40.0 V/μs
增益频宽积 10 MHz
输入补偿电压 490 µV
输入偏置电流 20 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
安装方式 Surface Mount
引脚数 8

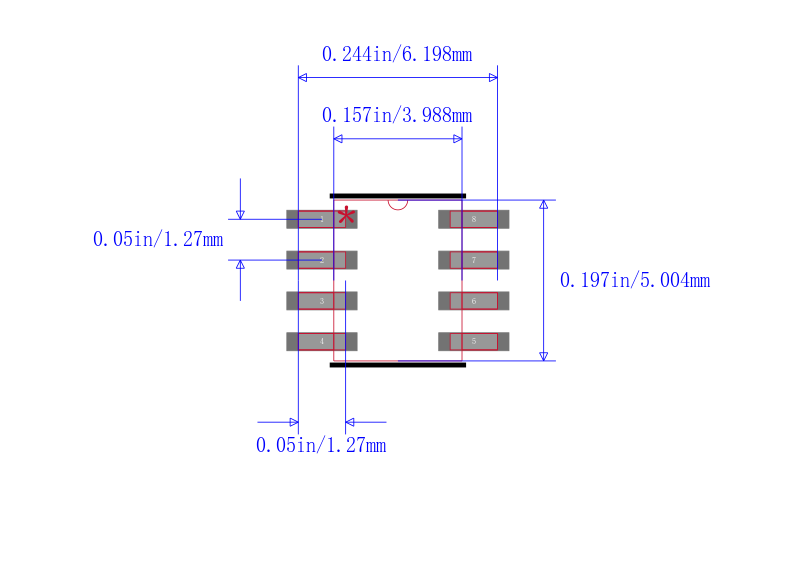

封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE2071CDG4 TI 德州仪器 | 当前型号 | 当前型号 |
TL071CD 德州仪器 | 类似代替 | TLE2071CDG4和TL071CD的区别 |
TL071ID 德州仪器 | 类似代替 | TLE2071CDG4和TL071ID的区别 |
TLE2071CD 德州仪器 | 类似代替 | TLE2071CDG4和TLE2071CD的区别 |
