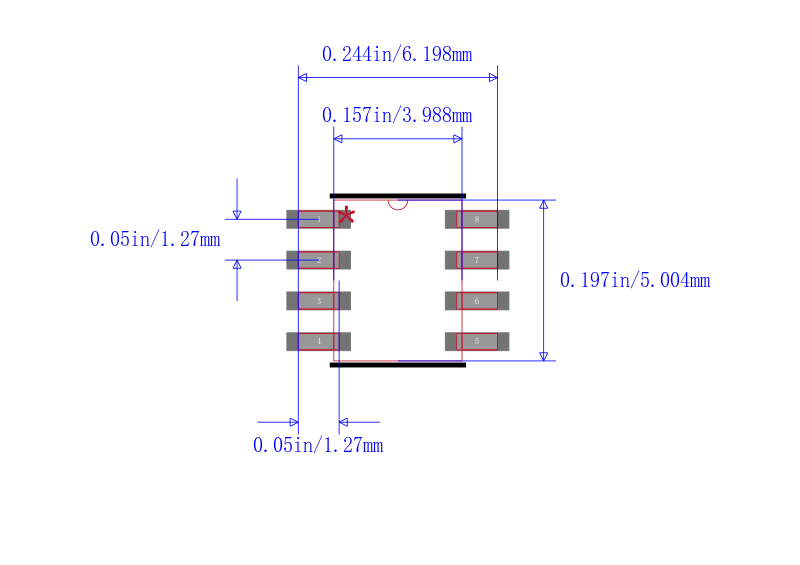

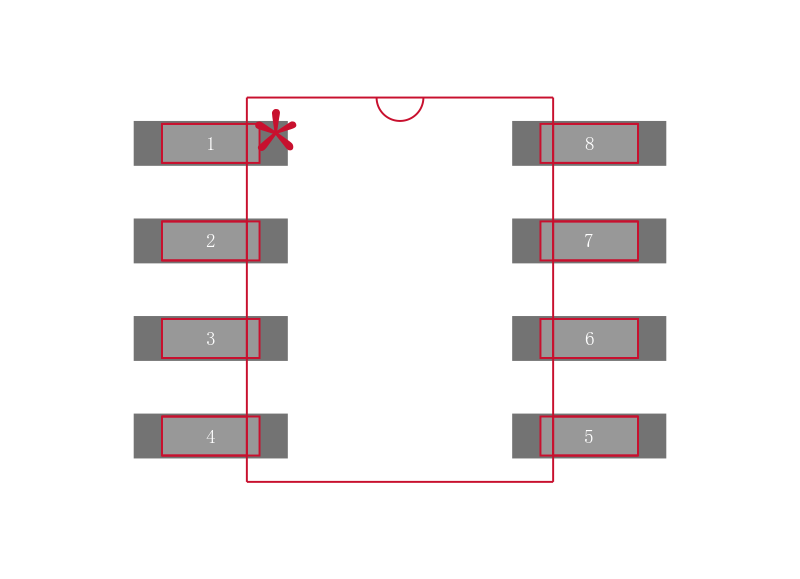

TLC27L7CDR

路LinCMOS精密双运算放大器 LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS

description

The TLC27L2 and TLC27L7 dual operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.

Trimmed Offset Voltage: TLC27L7. . . 500 µV Max at 25°C, VDD= 5 V

Input Offset Voltage Drift . . . Typically 0.1 µV/Month, Including the First 30 Days

Wide Range of Supply Voltages Over Specified Temperature Range:

   0°C to 70°C...3 V to 16 V

   −40°C to 85°C...4 V to 16 V

   −55°C to 125°C...4 V to 16 V

Single-Supply Operation

Common-Mode Input Voltage Range Extends Below the Negative Rail C-Suffix, I-Suffix Types

Ultra-Low Power...Typically 95 µW at 25°C, VDD= 5 V

Output Voltage Range Includes Negative Rail

High Input Impedance...1012ΩTyp

ESD-Protection Circuitry

Small-Outline Package Option Also Available in Tape and Reel

Designed-In Latch-Up immunity
