TQ2SL-L2-1.5V

2极5毫米表面贴装继电器， JIS C0806标准测量设备 2-pole 5 mm Surface Mount Relay, JIS C0806 compliant Measurement equipment

5 mm Low profile, 2 Form C and 2 A surface mount type relays

FEATURES

1\. Flat compact size

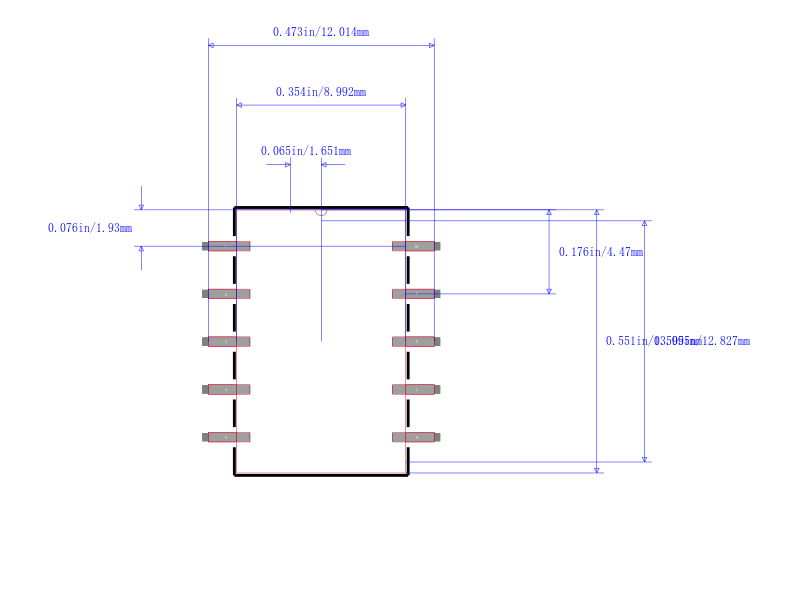

   14.0 L × 9.0 W × 5.0 H mm

   .551 L × .354 W × .197 H inch

2\. Nominal operating power:

   High sensitivity of 140mW 2 Form C single side stable type

3\. Suitable for SMD automatic insertion SA type

   With a height of 5.6 mm .220 inch, the relays meet JIS C 0806 specifications.

4\. DIL terminal array enables use of IC sockets

5\. Low thermal electromotive forceapprox. 5 μV

   [approx. 2 μV surface-mount type]

6\. Latching types also available

7\. Self-clinching terminal also available

8\. A range of surface-mount types is also available

   SA: Low-profile surface-mount terminal type

   SL: High connection reliability surface mount terminal type

   SS: Space saving surface-mount terminal type

9\. M.B.B. contact types available

TYPICAL APPLICATIONS

1\. Telephone-related equipment

2\. Communications

3\. Measurement equipment

4\. OA equipment

5\. Industrial machines
