TEXAS INSTRUMENTS TXB0304EVM 评估模块, TXB0304, 4位自动方向感应, 双向电压转换器

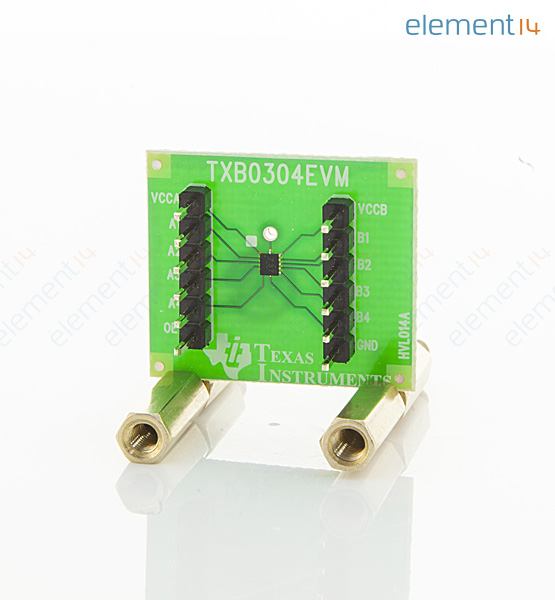

The is an Evaluation Module for evaluate the operation and performance of TXB0304, a 4-bit voltage level translator for push-pull applications. The A port is designed to track VCCA. VCCA accepts any supply voltage from 0.9 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 0.9 to 3.6V. This allows for low-voltage bidirectional translation anywhere between the 0.9 and 3.6V voltage nodes. The board was created to allow simplified evaluation and prototyping without the need for full board development. This board provides peripheral header style pads for probing and signal connection to each device pin. Headers are labelled with the corresponding pin name.
- .
- 4-bit Autodirection sensing voltage-level translator
- .
- Breakout board style EVM for prototype and evaluation
