T491A105M016AT

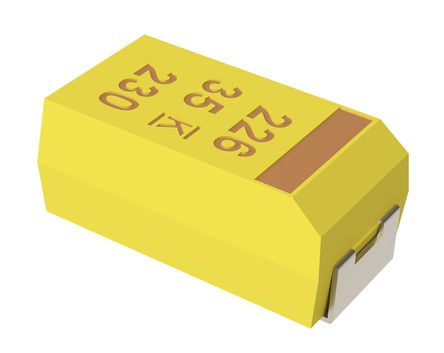

KEMET  T491A105M016AT  表面贴装钽电容, T491系列, 1 µF, ± 20%, 16 V, 1206 [3216 公制], A

钽器

欧时:
### T491 系列Kemet T491 系列钽质表面安装电容器，专门设计用于自动表面安装过程和设备。 T491 结合了 Kemet 久经考验的固体钽技术，采用最新的材料、流程和自动化技术，能够提供高效且高度可靠的电容器。 T491 系列端接为 100% 表面无光泽镀锡，并提供出色的润湿特性以及与表面安装焊接系统的兼容性。对称的柔性接头 激光标记外壳 无卤素环氧 薄型外壳尺寸 符合 RoHS 标准，采用无铅端接 电容容差 | 10 % ---|--- 温度范围 | -55 至 +85°C 尺寸 mm --- 外壳代码 | L±0.2 | W±0.2 | H±0.2 | F±0.1 | S±0.3 | A 最小值 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 | 1.1 C | 6.0 | 3.2 | 2.5 | 2.2 | 1.3 | 2.5 D | 7.3 | 4.3 | 2.8 | 2.4 | 1.3 | 3.8 V | 7.3 | 4.3 | 2 | 2.4 | 1.3 | 3.8 X | 7.3 | 4.3 | 4.0 | 2.4 | 1.3 | 3.8 ### 注电容器上的黑色带指明正极接线端子![http://china.rs-online.com/largeimages/L262425-01.gif]http://china.rs-online.com/largeimages/L262425-01.gif ### SMT 125°C

得捷:
CAP TANT 1UF 20% 16V 1206

立创商城:
1uF ±20% 16V

贸泽:
Tantalum Capacitors - Solid SMD 16V 1.0uF 20% "A"

e络盟:
表面贴装钽电容, 1 µF, 16 V, 1206 [3216 公制], T491系列, ± 20%, -55 °C

艾睿:
Need a high capacitance value with a low footprint design? Look no further this T491A105M016AT tantalum solid capacitor from Kemet will get you results. It can withstand a voltage of 16 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 0.5 μA. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%. Its capacitance value is 1uF.

Allied Electronics:
Capacitor; Tantalum; Cap 1uF; Tol 20%; SMT; Vol-Rtg 16V; A Case Size; Tape and Reel

Jameco:
Capacitor 1uF 16 Volt 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 Tape and Reel

安富利:
Cap Tant Solid 1uF 16V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 T/R

Chip1Stop:
Cap Tant Solid 1uF 16V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 10 Ohm 125 C T/R

TME:
Capacitor: tantalum; 1uF; 16VDC; SMD; Case: A; 1206; ±20%; -55÷125°C

Verical:
Cap Tant Solid 1uF 16V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 10 Ohm 125C Automotive T/R

Newark:
# KEMET  T491A105M016AT  Surface Mount Tantalum Capacitor, 1 µF, 16 V, T491 Series, ± 20%, 1206 [3216 Metric]
