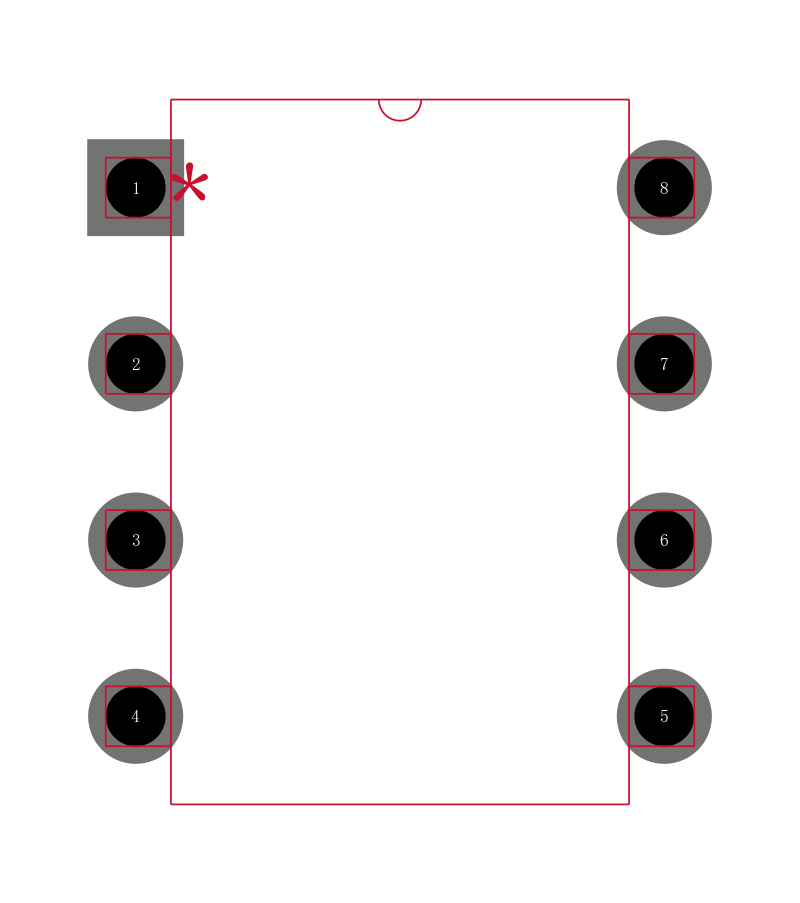

TL35072PE4

高转换率，单电源运算放大器 HIGH-SLEW-RATE, SINGLE-SUPPLY OPERATIONAL AMPLIFIERS

description

Quality, low cost, bipolar fabrication with innovative design concepts are employed for the TL33071/2/4, TL34071/2/4, and TL35071/2/4 series of monolithic operational amplifiers. This series of operational amplifiers offers 4.5 MHz of gain bandwidth product, 13 V/µs slew rate, and fast settling time without the use of JFET device technology.

Wide Gain-Bandwidth Product...4.5 MHz

High Slew Rate...13 V/µs

Fast Settling Time. . . 1.1 µs to 0.1%

Wide-Range Single-Supply Operation 4 V to 44 V

Wide Input Common-Mode Range Includes Ground VCC–

Low Total Harmonic Distortion. . .0.02%

Low Input Offset Voltage...3 mV Max A Suffix

Large Output Voltage Swing

  –14.7 V to 14 V With ±15-V Supplies

Large Capacitance Drive Capability 10,000 pF

Excellent Phase Margin...60°

Excellent Gain Margin...12 dB

Output Short-Circuit Protection
