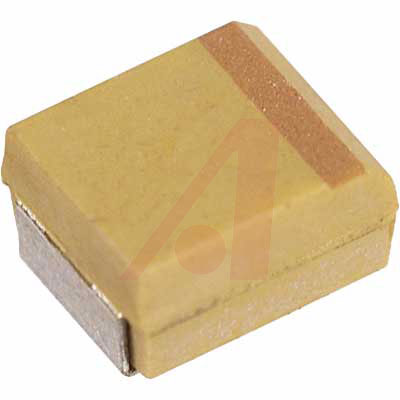

T491B475K016AT

KEMET  T491B475K016AT  表面贴装钽电容, T491系列, 4.7 µF, ± 10%, 16 V, 1411 [3528 公制], B

钽器

得捷:
CAP TANT 4.7UF 10% 16V 1411

欧时:
### T491 系列Kemet T491 系列钽质表面安装电容器，专门设计用于自动表面安装过程和设备。 T491 结合了 Kemet 久经考验的固体钽技术，采用最新的材料、流程和自动化技术，能够提供高效且高度可靠的电容器。 T491 系列端接为 100% 表面无光泽镀锡，并提供出色的润湿特性以及与表面安装焊接系统的兼容性。对称的柔性接头 激光标记外壳 无卤素环氧 薄型外壳尺寸 符合 RoHS 标准，采用无铅端接 电容容差 | 10 % ---|--- 温度范围 | -55 至 +85°C 尺寸 mm --- 外壳代码 | L±0.2 | W±0.2 | H±0.2 | F±0.1 | S±0.3 | A 最小值 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 | 1.1 C | 6.0 | 3.2 | 2.5 | 2.2 | 1.3 | 2.5 D | 7.3 | 4.3 | 2.8 | 2.4 | 1.3 | 3.8 V | 7.3 | 4.3 | 2 | 2.4 | 1.3 | 3.8 X | 7.3 | 4.3 | 4.0 | 2.4 | 1.3 | 3.8 ### 注电容器上的黑色带指明正极接线端子![http://china.rs-online.com/largeimages/L262425-01.gif]http://china.rs-online.com/largeimages/L262425-01.gif ### SMT 125°C

立创商城:
4.7uF ±10% 16V

e络盟:
表面贴装钽电容, 4.7 µF, 16 V, 1411 [3528 公制], T491系列, ± 10%, -55 °C

艾睿:
Compared to other capacitors, this T491B475K016AT tantalum solid capacitor from Kemet provides a higher capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 16 VDC. Its leakage current is 0.8 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its capacitance value is 4.7uF.

Allied Electronics:
4.7uF Solid MnO2 Tantalum Electrolytic Capacitor, 16 V dc +/-10%, T491 Series

安富利:
Cap Tant Solid 4.7uF 16V B CASE 10% 3.5 X 2.8 X 1.9mm SMD 3528-21 T/R

Chip1Stop:
Cap Tant Solid 4.7uF 16V B CASE 10% 3.5 X 2.8 X 1.9mm SMD 3528-21 3.5 Ohm 125 C T/R

TME:
Capacitor: tantalum; 4.7uF; 16VDC; SMD; Case: B; 1210; ±10%

Verical:
Cap Tant Solid 4.7uF 16V B CASE 10% 3.5 X 2.8 X 1.9mm Inward L SMD 3528-21 3.5 Ohm 125C Automotive T/R

Newark:
# KEMET  T491B475K016AT  Surface Mount Tantalum Capacitor, 4.7 µF, 16 V, T491 Series, ± 10%, 1411 [3528 Metric]

Win Source:
4.7μF Molded Tantalum Capacitors 16V 1411 3528 Metric 3.5 Ohm 0.138" L x 0.110" W 3.50mm x 2.80mm
