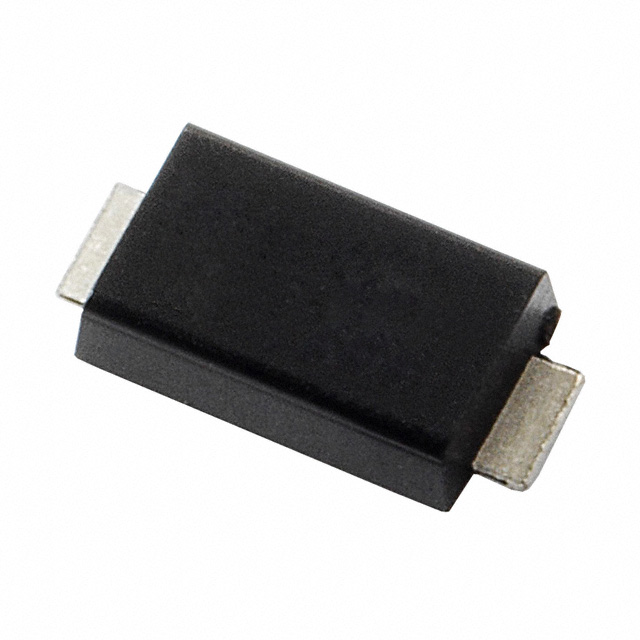

TPSMA6L40A

单向 40V

64.5V 夹子 9.3A Ipp TVS - 表面贴装型 DO-221AC

立创商城:
单向 Vrwm:40V

得捷:
TVS DIODE 40VWM 64.5VC DO221AC

贸泽:
ESD Suppressors / TVS Diodes 40V 600W UNI-DIR TPSMA6L AEC-Q101

艾睿:
This TPSMA6L40A TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 64.5 V and minimum breakdown voltage is 44.4 V. Its maximum leakage current is 1 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.

TME:
Diode: transil; 600W; 46.8V; 9.3A; unidirectional; ±5%; DO221AC

Newark:
# LITTELFUSE  TPSMA6L40A  TVS Diode, TPSMA6L Series, Unidirectional, 40 V, 64.5 V, DO-221AC, 2 Pins
