单向 12.8V 600W
If you"re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this TVS diode from is perfect for you. This device"s maximum clamping voltage is 21.2 V and minimum breakdown voltage is 14.3 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
击穿电压 15 V
耗散功率 5 W
钳位电压 21.2 V
测试电流 1 mA
最大正向浪涌电流（Ifsm） 100 A
脉冲峰值功率 600 W
最小反向击穿电压 14.3 V
击穿电压 14.3 V
正向电压Max 3.5 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃

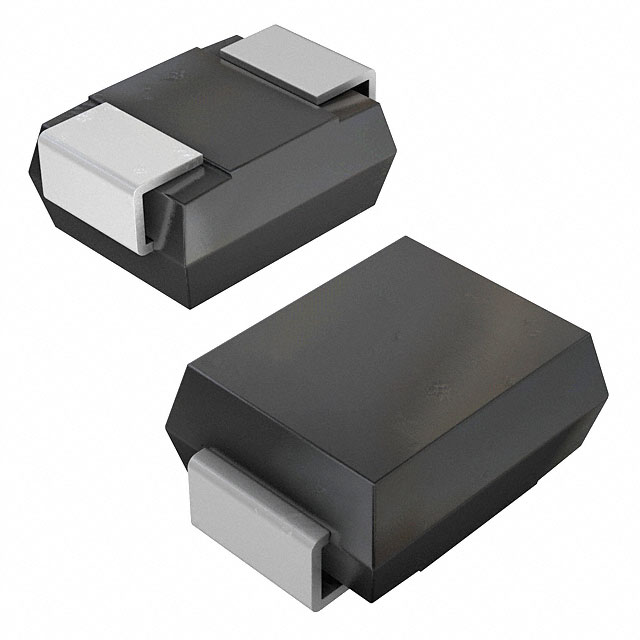

安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPSMB15A Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB15A 力特 | 功能相似 | TPSMB15A和P6SMB15A的区别 |
P6SMBJ15A 力特 | 功能相似 | TPSMB15A和P6SMBJ15A的区别 |
SMBJ15A/2 威世 | 功能相似 | TPSMB15A和SMBJ15A/2的区别 |
