双向 40.2V 600W
64.8V 夹子 9.4A Ipp TVS - 表面贴装型 DO-214AA(SMBJ)
立创商城:
双向 Vrwm:40.2V 600W
得捷:
TVS DIODE 40.2VWM 64.8VC DO214AA
艾睿:

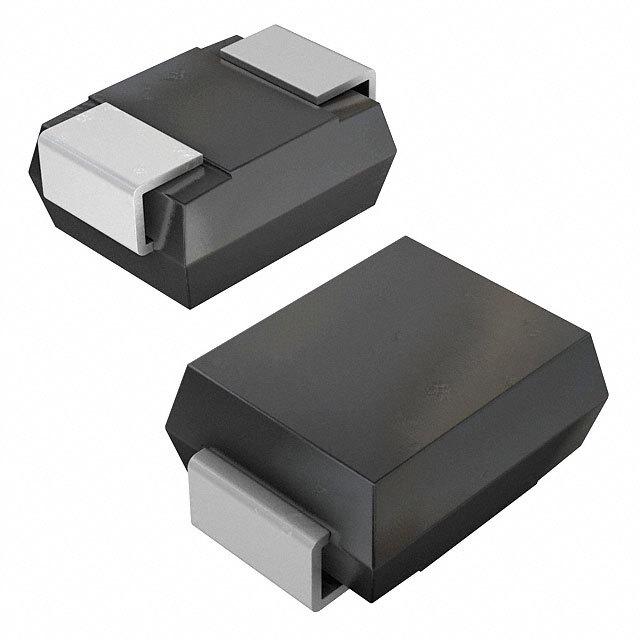

This TPSMB47CA TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. This device&s;s maximum clamping voltage is 64.8 V and minimum breakdown voltage is 44.7 V. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Verical:
Diode TVS Single Bi-Dir 40.2V 600W Automotive 2-Pin SMB T/R
钳位电压 64.8 V
测试电流 1 mA
最大正向浪涌电流(Ifsm) 100 A
脉冲峰值功率 600 W
最小反向击穿电压 44.7 V
击穿电压 44.7 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSMB47CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB47CA 力特 | 类似代替 | TPSMB47CA和P6SMB47CA的区别 |
P6SMBJ47CA 力特 | 类似代替 | TPSMB47CA和P6SMBJ47CA的区别 |
