TPSMB91A

ESD 抑制器/TVS 二极管 600W 91V AEC-Q101 5% Uni-Directional

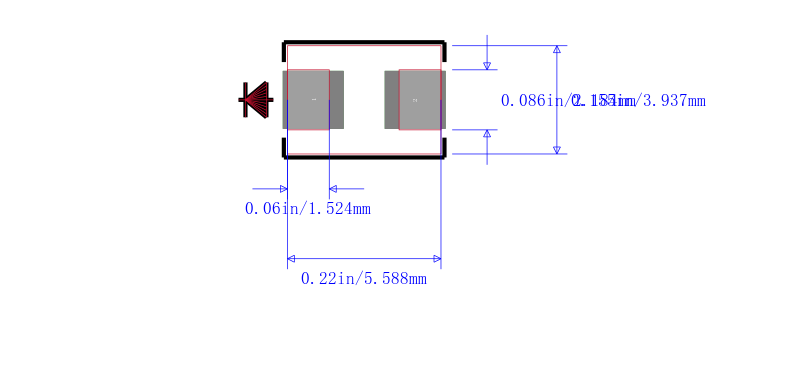

125V 夹子 4.9A Ipp TVS - 表面贴装型 DO-214AA（SMBJ）

立创商城:
单向 Vrwm:77.8V 600W

得捷:
TVS DIODE 77.8VWM 125VC DO214AA

贸泽:
ESD 抑制器/TVS 二极管 600W 91V AEC-Q101 5% Uni-Directional

艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this TPSMB91A TVS diode from Littelfuse. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 125 V and minimum breakdown voltage is 86.5 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

TME:
Diode: transil; 600W; 91V; 4.9A; unidirectional; ±5%; DO214AA

Verical:
TVS Diode Single Uni-Dir 77.8V 600W Automotive 2-Pin SMB T/R
