ESD 抑制器/TVS 二极管 600W 56V AEC-Q101 5% Bi-Directional

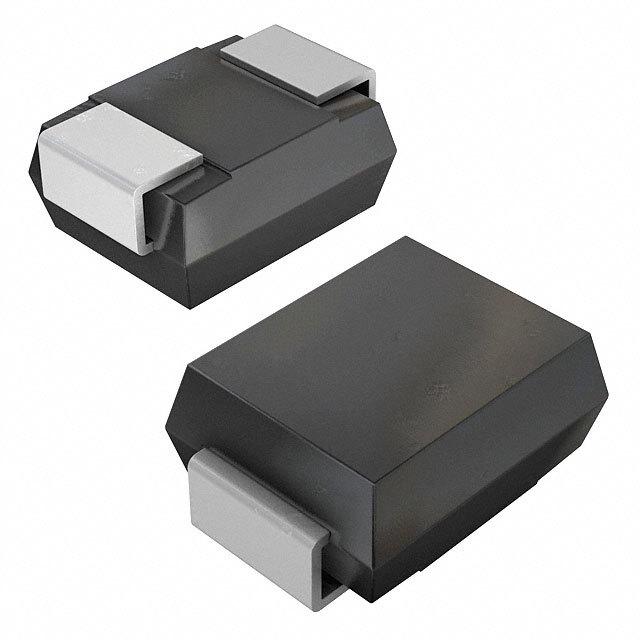

77V 夹子 7.9A Ipp TVS - 表面贴装型 DO-214AA(SMBJ)
得捷:
TVS DIODE 47.8VWM 77VC DO214AA
立创商城:
双向 Vrwm:47.8V 600W
贸泽:
ESD 抑制器/TVS 二极管 600W 56V AEC-Q101 5% Bi-Directional
艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this TPSMB56CA TVS diode from Littelfuse. This device&s;s maximum clamping voltage is 77 V and minimum breakdown voltage is 53.2 V. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Verical:
TVS Diode Single Bi-Dir 47.8V 600W Automotive 2-Pin SMB T/R
Win Source:
TVS DIODE 47.8VWM 77VC DO214AA / 77V Clamp 7.9A Ipp Tvs Diode Surface Mount DO-214AA SMBJ
工作电压 56 V
击穿电压 58.8 V
耗散功率 5 W
钳位电压 77 V
测试电流 1 mA
最大正向浪涌电流(Ifsm) 100 A
脉冲峰值功率 600 W
最小反向击穿电压 53.2 V
击穿电压 53.2 V
正向电压Max 3.5 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSMB56CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMBJ56CA 力特 | 类似代替 | TPSMB56CA和P6SMBJ56CA的区别 |
P6SMB56CA 力特 | 功能相似 | TPSMB56CA和P6SMB56CA的区别 |
