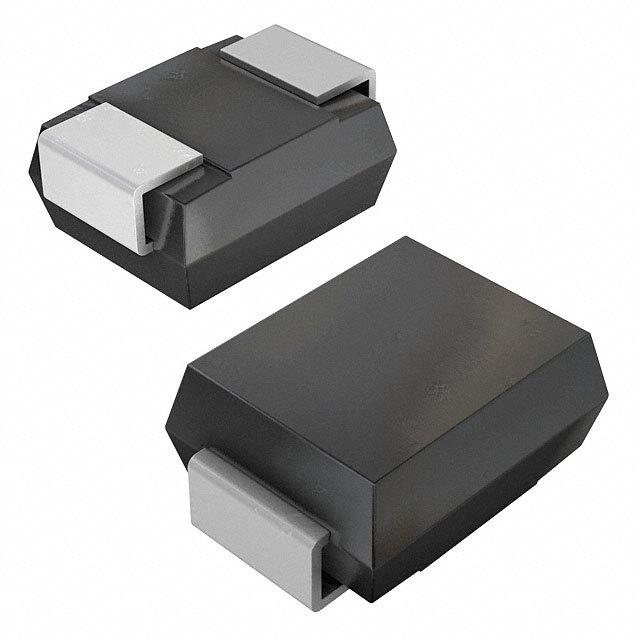

TPSMB22A

ESD抑制器/TVS二晶體 600W 22V AEC-Q101 5% Uni-Directional

This TVS diode developed by can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1 μA. This device"s maximum clamping voltage is 30.6 V and minimum breakdown voltage is 20.9 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
