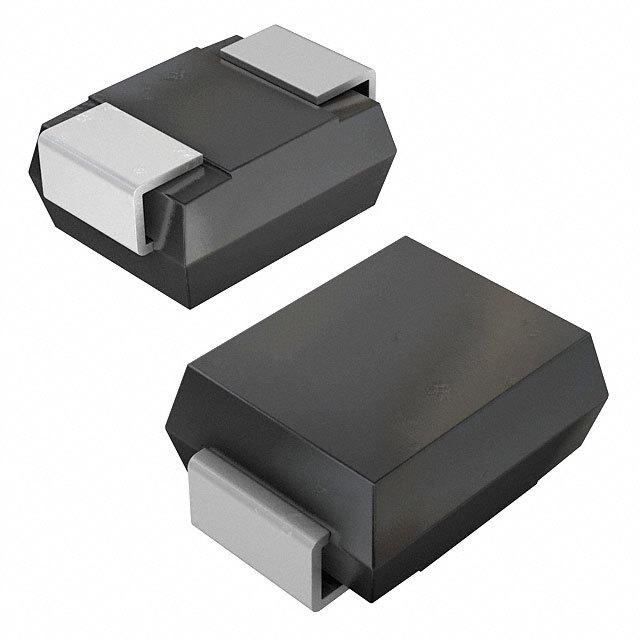

ESD 抑制器/TVS 二极管 600W 16V AEC-Q101 5% Bi-Directional
Protect your electronic equipment from sudden or momentary overvoltage conditions with this TVS diode from . This device"s maximum clamping voltage is 22.5 V and minimum breakdown voltage is 15.2 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
工作电压 16 V
击穿电压 16.8 V
耗散功率 5 W
钳位电压 22.5 V
测试电流 1 mA
最大正向浪涌电流(Ifsm) 100 A
脉冲峰值功率 600 W
最小反向击穿电压 15.2 V
击穿电压 15.2 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSMB16CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB16CA 力特 | 功能相似 | TPSMB16CA和P6SMB16CA的区别 |
P6SMBJ16CA 力特 | 功能相似 | TPSMB16CA和P6SMBJ16CA的区别 |
