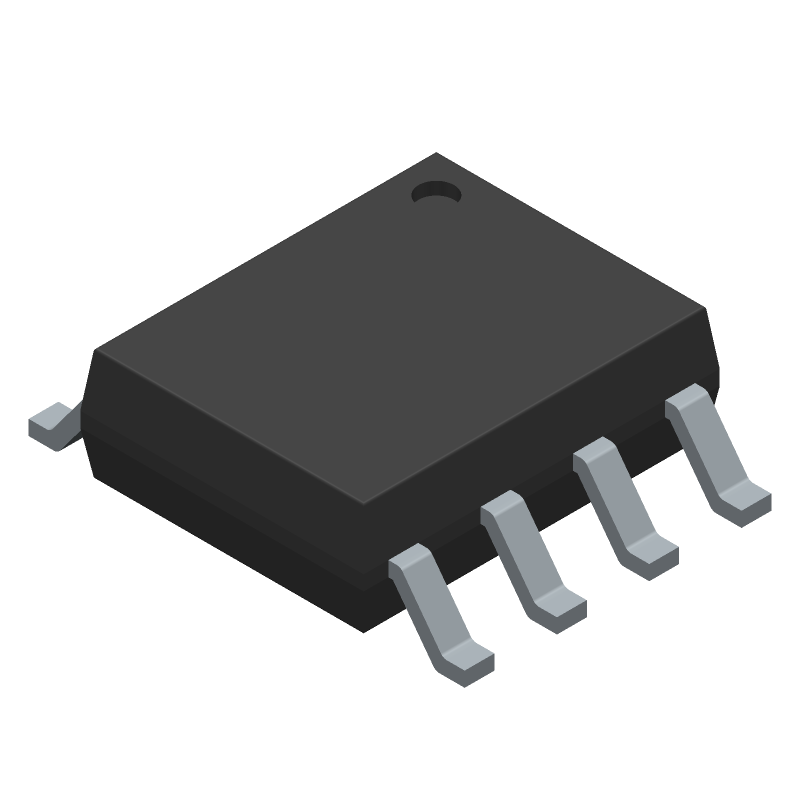

TLC27L7IDG4

TEXAS INSTRUMENTS  TLC27L7IDG4  运算放大器, 双路, 85 kHz, 2个放大器, 0.03 V/µs, 4V 至 16V, SOIC, 8 引脚

The is a dual precision Operational Amplifier combines a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power and high gain. This device uses Texas Instruments silicon-gate LinCMOS™ technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes. The extremely high input impedance, low bias currents and low power consumption make this device ideal for high gain, low frequency and low power applications. These advantages, in combination with good common-mode rejection and supply voltage rejection, make this device a good choice for new state-of-the-art designs as well as for upgrading existing designs. In general, many features associated with bipolar technology are available in LinCMOS™ operational amplifier, without the power penalties of bipolar technology. It is suitable for general applications such as transducer interfacing.

.

Single-supply operation

.

Common-mode input voltage range extends below the negative rail

.

Output voltage range includes negative rail

.

ESD-protection circuitry

.

Designed-in latch-up immunity

.

Input offset voltage drift - Typically 0.1µV/month, including the first 30 days

.

95µW at 25°C, VDD=5V Typical ultra-low power

.

10¹²R Typical high input impedance

.

Green product and no Sb/Br
