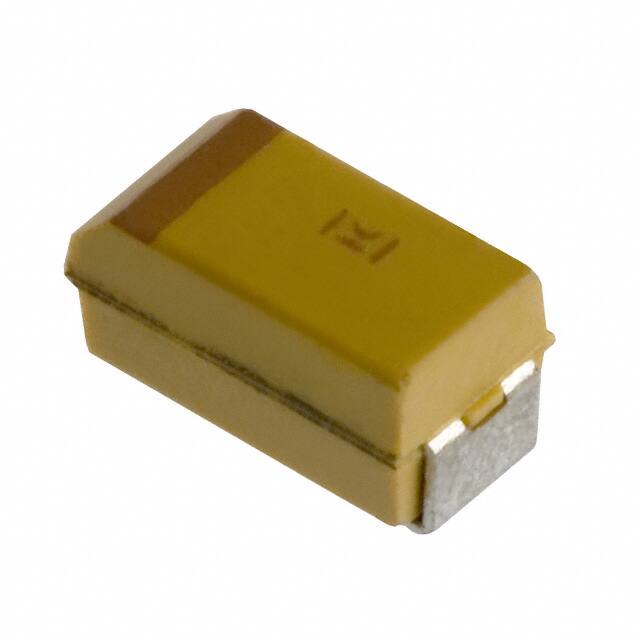

1206 3.3uF ±20% 6.3V
This tantalum solid capacitor from Kemet provides a high capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 6.3 VDC. Its leakage current is 0.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. Its capacitance value is 3.3uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.
得捷:
CAP TANT 3.3UF 20% 6.3V 1206
立创商城:
3.3uF ±20% 6.3V
贸泽:
Tantalum Capacitors - Solid SMD 6.3volts 3.3uF 20%
艾睿:
This T491A335M006AT tantalum solid capacitor from Kemet provides a high capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 6.3 VDC. Its leakage current is 0.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. Its capacitance value is 3.3uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.
安富利:
Cap Tant Solid 3.3uF 6.3V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 8 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 3.3uF 6.3V A CASE 20% 3.2 X 1.6 X 1.6mm SMD 3216-18 7 Ohm 125C T/R
Verical:
Cap Tant Solid 3.3uF 6.3V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 7 Ohm 125C Automotive T/R
额定电压DC 6.00 V
电容 3.3 µF
等效串联电阻ESR 8 Ω
容差 ±20 %
产品系列 T491
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 3216-18
封装 3216
长度 3.20 mm
宽度 1.60 mm
高度 1.6 mm
封装公制 3216-18
封装 3216
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命(小时) 2000h @125℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
