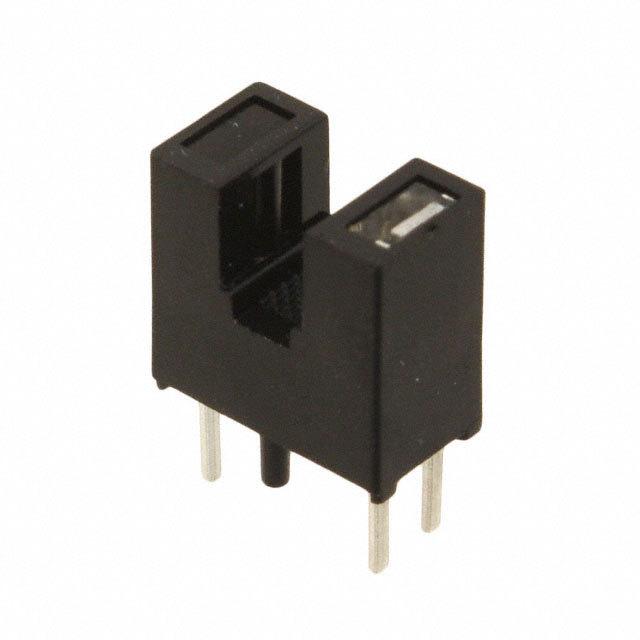

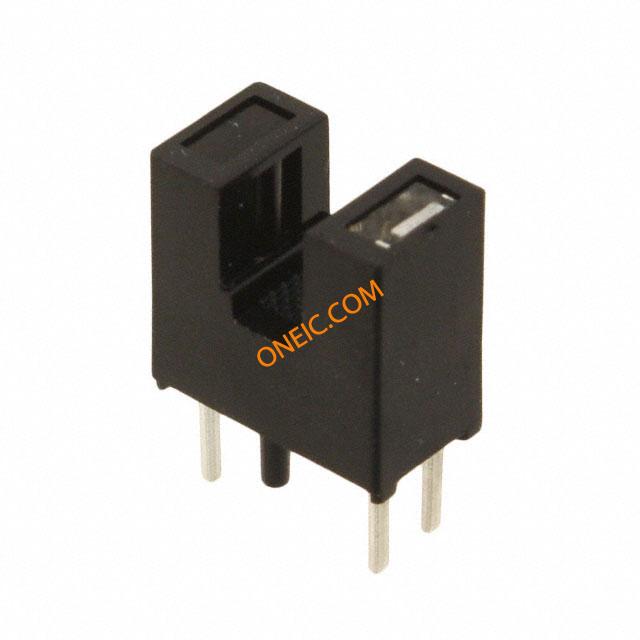

TCST1030

透射光学传感器，具有光电晶体管输出 Transmissive Optical Sensor with Phototransistor Output

DESCRIPTION

The TCST1103, TCST1202, and TCST1300 are transmissive sensors that include an infrared emitter and

phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width.

FEATURES

• Package type: leaded

• Detector type: phototransistor

• Dimensions L x W x H in mm: 11.9 x 6.3 x 10.8

• Gap in mm: 3.1

• Typical output current under test: IC= 4 mA TCST1103

• Typical output current under test: IC= 2 mA TCST1202

• Typical output current under test: IC= 0.5 mA TCST1300

• Daylight blocking filter

• Emitter wavelength: 950 nm

• Lead Pb-free soldering released

• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC

APPLICATIONS

• Optical switch

• Photo interrupter

• Counter

• Encoder
