Snubberlessâ ?? ¢ ，逻辑电平标准的16 A三端双向可控硅 Snubberlessâ¢, logic level and standard 16 A Triacs
Description
Available in through-hole, the T16T series of Triacs can be used as on/off or phase angle control function in general purpose ac switching where high commutation capability is required.
This series can be designed-in in many value sensitive appliances thanks to the parameters guidance provided in the following pages.

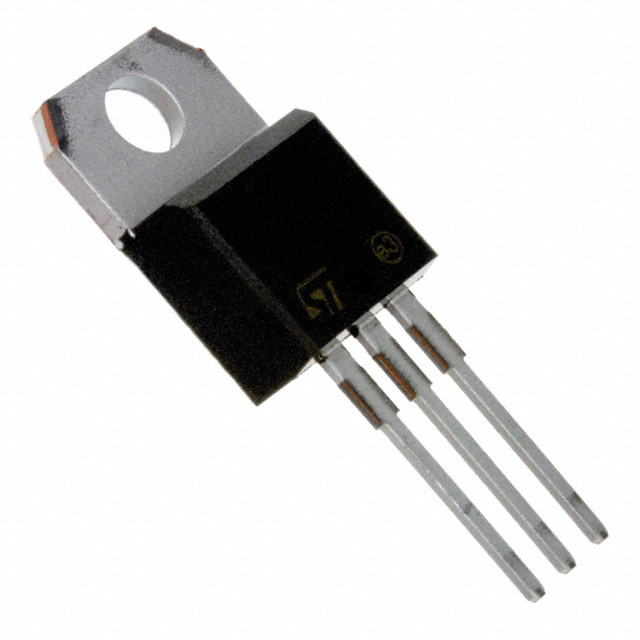

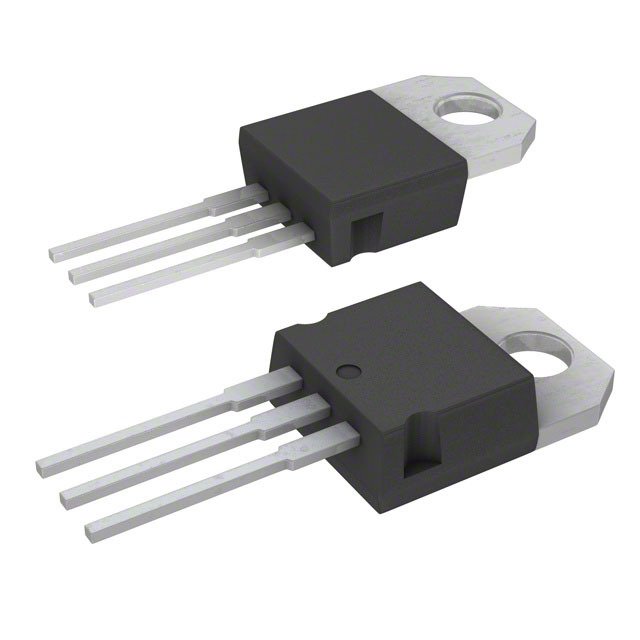

Provides insulation rated at 2500 V rms TO-220AB insulated package.
Features
■ Medium current Triac
■ High static and dynamic commutation
■ Low thermal resistance with clip bonding
■ Packages is RoHS 2002/95/EC compliant
■ 600 V VRM
Applications
■ Value sensitive application
■ General purpose ac line load switching
■ Motor control circuits in power tools
■ Small home appliances, lighting
■ Inrush current limiting circuits
■ Overvoltage crowbar protection
