TLP624-4

晶体管输出光电耦合器 55Vceo 5000Vrms 4 channels

Programmable Controllers

AC/DC−Input Module

Telecommunication

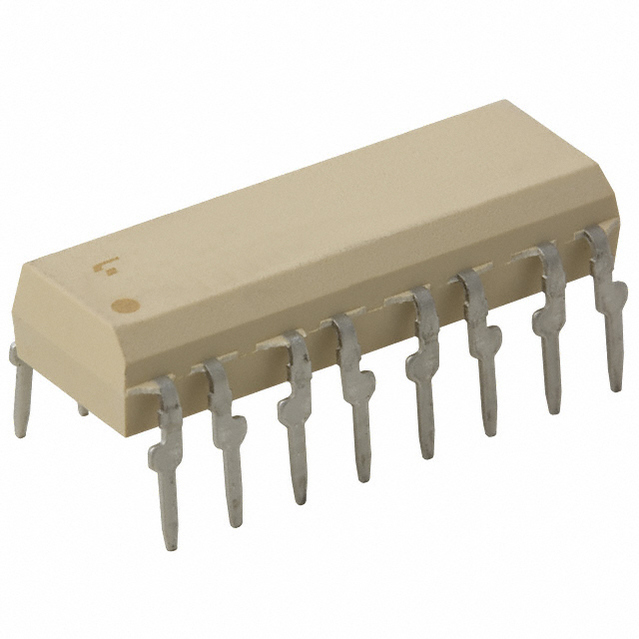

The TOSHIBA TLP624, −2 and −4 consist of a gallium arsenide infrared emitting diode optically coupled to a photo−transistor. The TLP624−2 offers two isolated channels in an eight lead plastic DIP, while the TLP624−4 provides four isolated channels in a sixteen plastic DIP.

• Collector−emitter voltage: 55V min.

• Current transfer ratio

• Isolation voltage: 5000Vrms min.

• UL recognized: UL1577, file No.E67349

• BSI approved: BS EN60065: 2002 Certificate No.7426

  BS EN60950-1: 2002 Certificate No.7427

• Note: Application type name for certification test, please use standard product type name, i.e.

TLP624BV: TLP624

TLP624−2BV: TLP624−2
