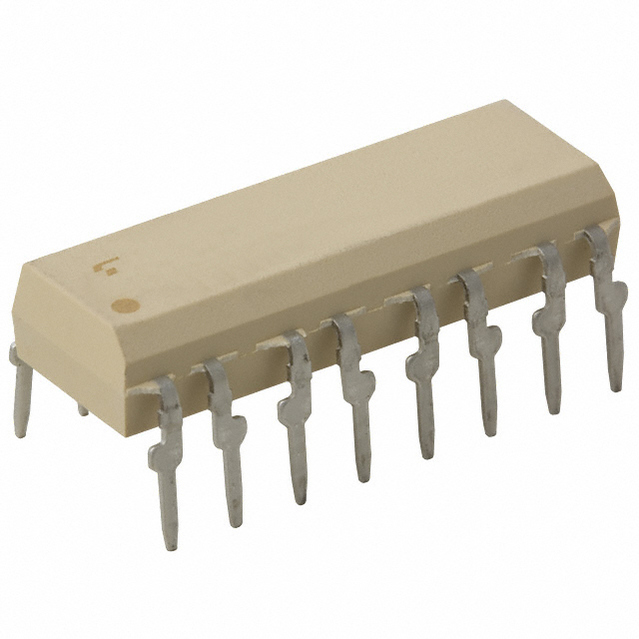

TLP626-4

Optocoupler AC-IN 4CH Transistor DC-OUT 16Pin PDIP

Programmable Controllers AC / DC−Input Module Telecommunication

The TOSHIBA TLP626, −2 and −4 consist of gallium arsenide infrared emitting diodes connected in inverse parallel, optically coupled to a photo−transistor. The TLP626−2 offers two isolated channels in an eight lead plastic DIP, while the TLP626−4 provides four isolated channels in a sixteen plastic DIP.

• Collector−emitter voltage: 55Vmin.

• Current transfer ratio

• Isolation voltage: 5000Vrms min.

• UL recognized: UL1577, file no.E67349

• BSI approved: BS EN60065: 2002 certificate no.7426

                          BS EN60950-1: 2002 certificate no.7427

• Note: Application type name for certification test,

            please use standard product type name, i.e.

           TLP626BV: TLP626
