TIBPAL20R4-25CNT

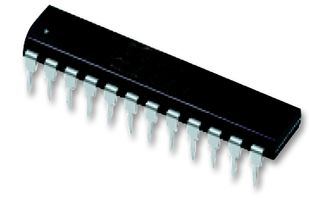

TEXAS INSTRUMENTS  TIBPAL20R4-25CNT  可编程逻辑芯片, PAL, Impact-X, 25NS, 24-DIP

description

These programmable array logic devices feature high speed and functional equivalency when compared with currently available devices. These IMPACT™ circuits combine the latest AdvancedLow-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allows forquick design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for futher reduction in board space.

• Low-Power, High-Performance

   Reduced ICC of 105 mA Max

   fmax:

      Without Feedback . . . 33 MHz Min

      With Feedback . . . 25 MHz Min

   tpd . . . 25 ns Max

• Direct Replacement for PAL20L8A, PAL20R4A, PAL20R6A, PAL20L8A, with at Least 50% Reduction in Power

• Preload Capability on Output Registers Simplifies Testing

• Power-Up Clear on Registered Devices All Register Outputs are Set Low, but Voltage Levels at the Output Pins Go High

• Package Options Include Plastic Chip Carriers in Addition to Plastic and Ceramic DIPs

• Dependable Texas Instruments Quality and Reliability
