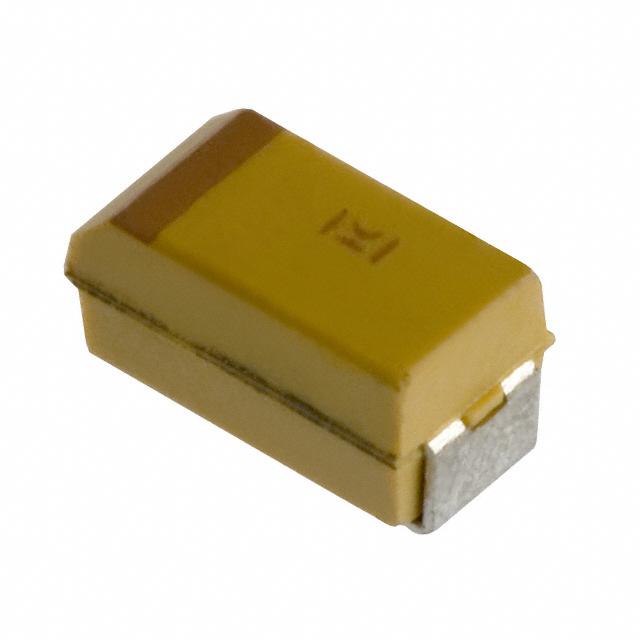

T491A475K010AH

Cap Tant Solid 4.7uF 10V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 5Ω 125℃ T/R

4.7 µF 模制 钽器 10 V 1206（3216 公制） 5 欧姆

得捷:
CAP TANT 4.7UF 10% 10V 1206

立创商城:
4.7uF ±10% 10V

艾睿:
This T491A475K010AH solid tantalum capacitor from Kemet will retain its properties through a variety of operating conditions. It can withstand a voltage of 10 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 0.5 μA. Its capacitance value is 4.7uF. It has a tolerance of 10%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.

安富利:
The T491 Series meets or exceeds the requirements of EIA standard 535BAAC. This series is classified as MSL Moisture Sensitivity Level 1 under J STD 020: unlimited floor life time at ≤30°C / 85% RH. The T491 standard terminations are available in 100% matte tin and provide excellent wetting characteristics and compatibility with today"s surface mount solder systems. Tin/lead Sn/Pb terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is tape and reel in accordance with EIA 481. This system provides perfect compatibility with all tapefed placement units.

Chip1Stop:
Cap Tant Solid 4.7uF 10V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 5 Ohm 125 C T/R

Verical:
Cap Tant Solid 4.7uF 10V A CASE 10% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 4 Ohm 125C Automotive T/R
