TPSB226K010R0500

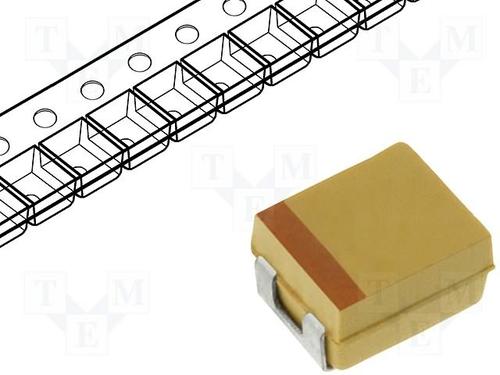

AVX  TPSB226K010R0500  表面贴装钽电容, TPS系列, 22 µF, ± 10%, 10 V, 1210 [3225 公制], B

22 µF Molded Tantalum Capacitors 10 V 1411 3528 Metric, 1210 500mOhm

立创商城:
22uF ±10% 10V

艾睿:
A high capacitance per volume with a low footprint design is what you will get by using this TPSB226K010R0500 tantalum solid capacitor from AVX. It can withstand a voltage of 10 VDC. Its leakage current is 2.2 μA. This solid capacitor has a maximum operating temperature of 125 °C. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its capacitance value is 22uF. It has a tolerance of 10%.

安富利:
Cap Tant Solid 22uF 10V B CASE 10% 3.5 X 2.8 X 1.9mm SMD 3528-21 0.5 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 22uF 10V B CASE 10% 3.5 X 2.8 X 1.9mm SMD 3528-21 0.5 Ohm 125A？A℃ T/R

TME:
Capacitor: tantalum; low ESR; 22uF; 10VDC; Case: B; 1210; ESR:500mΩ

Verical:
Cap Tant Solid 22uF 10V B CASE 10% 3.5 X 2.8 X 1.9mm Inward L SMD 3528-21 0.5 Ohm 125C T/R

Newark:
# AVX  TPSB226K010R0500  Surface Mount Tantalum Capacitor, 22 µF, 10 V, TPS Series, ± 10%, 1210 [3225 Metric]

儒卓力:
**TC 22uF 10V 10% Case B 500mOhm **

Win Source:
CAP TANT 22UF 10V 10% 1210
