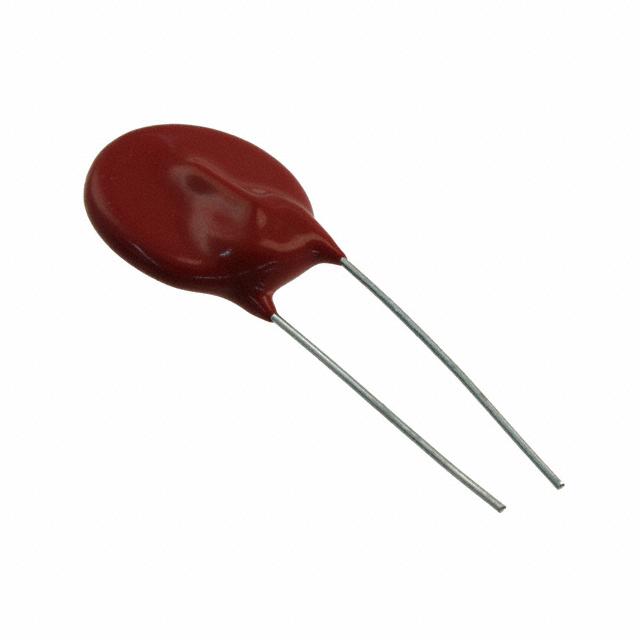

TMOV20RP200E

TMOV®我TMOV®压敏电阻系列 TMOV® and i TMOV® Varistor Series

314V 10kA Varistor 1 Circuit Through Hole Disc 20mm

得捷:
VARISTOR 314V 10KA DISC 20MM

立创商城:
TMOV20RP200E

贸泽:
压敏电阻 THERMALLY PROTECTED VARISTOR 20MM

艾睿:
Similar to a diode this TMOV20RP200E MOV manufactured from Littelfuse is a nonlinear component. Its maximum surge current is 10000 A. This part has a pitch of 7.5 mm. This device&s;s clamping current is 100 A and clamping voltage is 530 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device is made with metal oxide technology. Its capacitance value is 0.00125uF. The maximum AC voltage rating is 200 VAC and the maximum DC voltage rating is 260 VDC. This product is 28 mm tall and 9.5 mm deep with a diameter of 23 mm. This varistor has a voltage of 344 V.

Chip1Stop:
Var MOV 200VAC/260VDC 10000A 344V Radial Bulk

TME:
Varistor: metal-oxide; THT; 200VAC; 260VDC; 314V; 10kA; 154J

Newark:
# LITTELFUSE  TMOV20RP200E  TVS Varistor, 200 V, 260 V, TMOV Series, 530 V, Disc 20mm, Metal Oxide Varistor MOV
