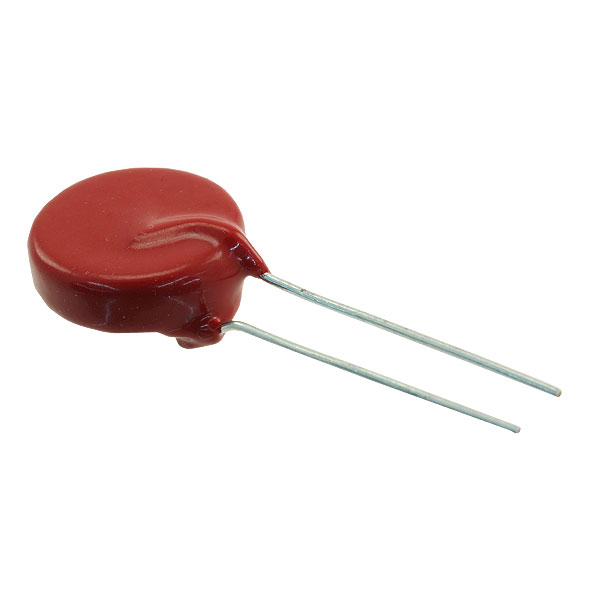

TMOV20RP460E

TMOV®我TMOV®压敏电阻系列 TMOV® and i TMOV® Varistor Series

变阻器 电路 通孔 圆片式 20mm

立创商城:
TMOV20RP460E

得捷:
VARISTOR 750V 10KA DISC 20MM

贸泽:
压敏电阻 THERMALLY PROTECTED VARISTOR 20MM

e络盟:
金属氧化物压敏变阻器, 460V, 1.24KV, RADI

艾睿:
Look no further, this TMOV20RP460E MOV from Littelfuse is a variable resistor. Its maximum surge current is 10000 A. This device&s;s clamping current is 100 A and clamping voltage is 1240 V. This part has a pitch of 7.5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 460 VAC and the maximum DC voltage rating is 610 VDC. This varistor has a voltage of 825 V. This device utilizes metal oxide technology. Its capacitance value is 200pF. This product is 28 mm tall and 11 mm deep with a diameter of 23 mm.

Chip1Stop:
Var MOV 460VAC/610VDC 10000A 825V Radial Bulk
